DESCRIPTION

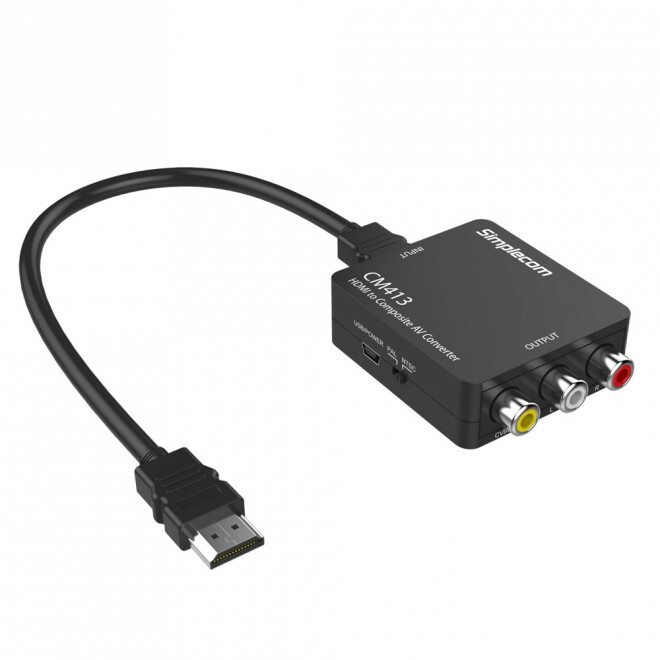

Simplecom CM413 HDMI to Composite AV Video Adapter converts the high definition HDMI digital video and audio signal to analog composite video and R/L audio output. It can be used for typical HD video sources, such as Laptop, Smartphone, Blu-ray Player, HD TV box, and Digital Media Receiver, etc. to a display with CVBS input, such as traditional CRT TV, RPTV and projectors.

Features

• Support HDMI input from up to 1080p (Does Not support 3D)
• HDMI Input, Composite Video + Audio R/L Output (Does Not Support reverse way)
• Supports NTSC and PAL two standard TV formats with a select switch
• Hardware conversion, plug and play without any software driver
• Signals through the HDMI high-definition video processing downscale to 576i, 480i (PAL / NTSC) video signal output
• With advanced video processing chip, for better compatibility and image quality
• Self-powered by HDMI port (USB Power is a backup power source and Not Required as most HDMI port can supply sufficient power)
• HDCP Compliant, support most HDCP HDMI output, e.g. Apple TV, Foxtel, and other Internet Streaming Box

Specifications

• Model: CM413
• HDMI Version: 1.4, backward compatible with HDMI 1.1,1.2,1.3
• HDCP Compliant: Yes
• Support TV formats: NTSC and PAL
• Inputs: HDMI x 1
• Outputs: AV x 1; L / R x 1
• HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
• CVBS output: 480i, 576i
• Dimensions : 55mm(W)x66mm(D)x 20mm(H)
• Weight Converter : 40 gram
• PAL and NTSC standard format selector switch

Package Contents

• 1 x CM413 HDMI to AV Converter
• 1 x USB Cable (for backup power source only)
• 1 x HDMI Lead
