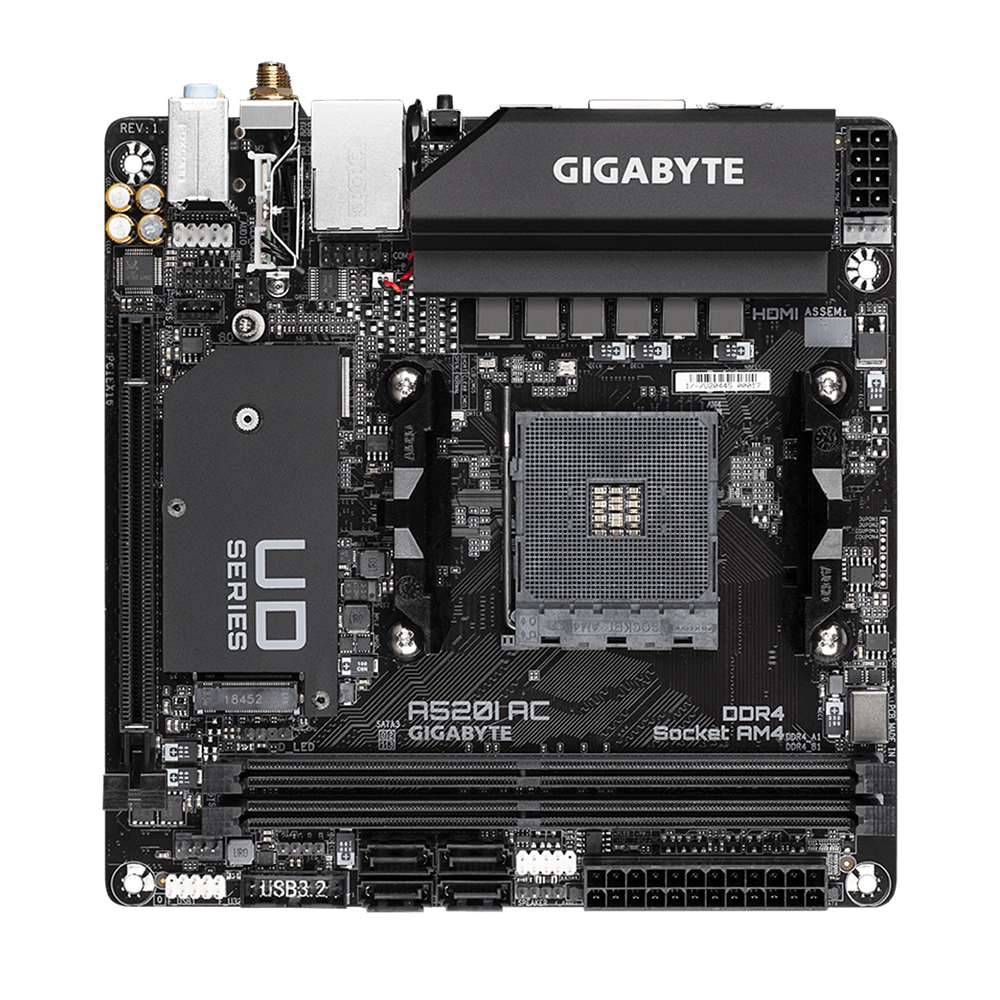

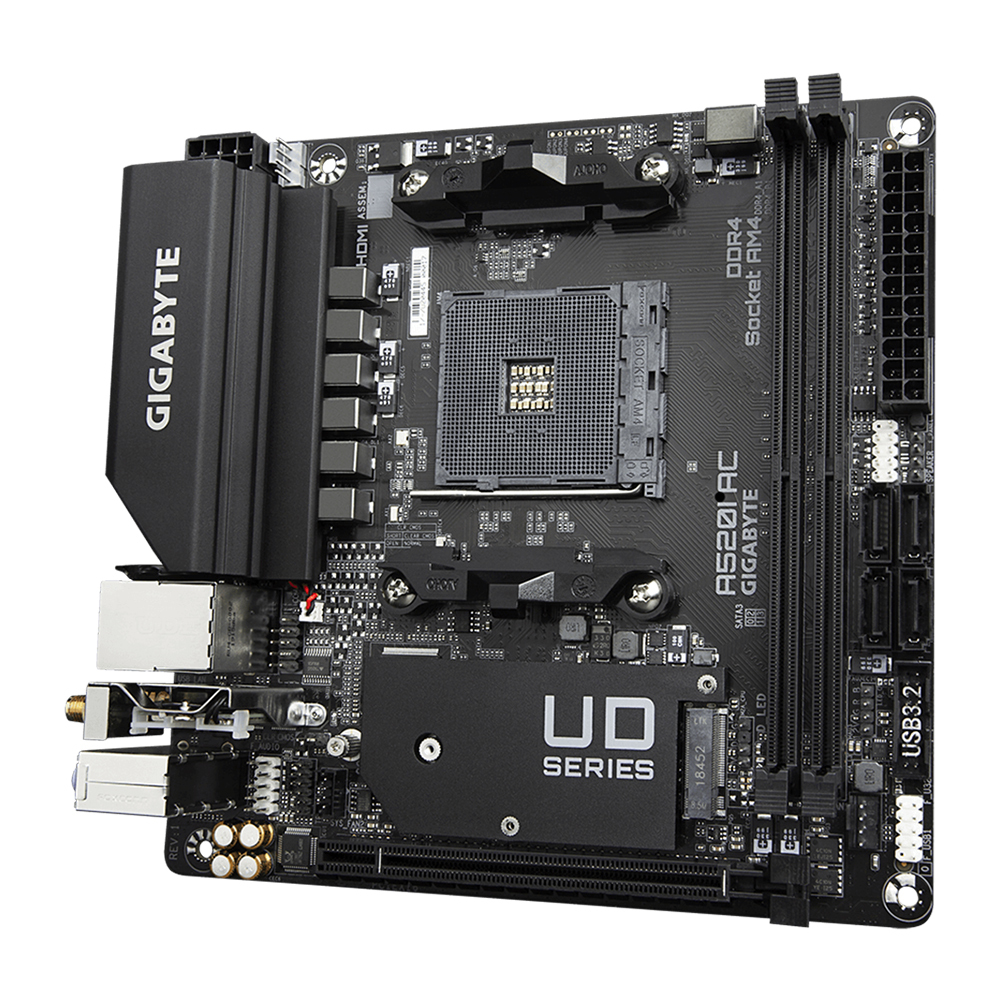

Gigabyte A520I AC 1.4 AMD Mini-ITX Motherboard

Gigabyte A520I AC AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard Intel 802.11ac WIFI, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus.

PRODUCT SPECIFICATIONS

• CPU Type: Socket AM4
• Vendor: AMD
• Speed Support AM4 series
• L2/L3 Cache Size Embedded in CPU
• Chipset North Bridge A520
• Flash ROM 256Mb x1
• Super IO ITE 8688
• Heatsink/Heatpipe Heatsink for main chip
• Memory Socket 2 DIMM
• Frequency DDR4, 3200
• Type 2-CH DDR4
• Serial ATA Controller Integrated in main chip
• Spec SATA 6Gb/s
• RAID or SCSI Controller Integrated in main chip
• Spec RAID 0/1/10
• Graphics Interface PCI-E 3.0 x16
• Controller Integrated in CPU
• VRAM size (optional) Share 16GB(Max.)
• Driect X support DirectX 12
• Audio Codec Realtek ALC887
• Channel 7.1 channel
• LAN Controller Realtek 8118
• Spec GbE
• USB Controller Integrated in main chip/Integrated in CPU
• Spec USB 3.2 GEN1/USB 2.0
• Power Management Power Connector ATX 2*12 PIN/ATX 12V 2*4 PIN
• PCB Form Factor Mini-ITX
• Layer 8-lay
• 2oz Copper PCB N/A
• Size (D x W) 170x170mm
• Color Dark Brown
• Expansion PCI Express x1 slot N/A
• PCI Express x16 slot YES, 1
• M.2 Yes/ socket 1 for WIFI, 1/Yes/ socket 3 for SSD (PCIe & SATA mode), 1
• Other Features AORUS N/A
• Packing SATA cable YES, 2
• Color Box Size mini ITX (222x189x78mm)
• WIFI Controller Intel 1x1 AC3168
