DESCRIPTION

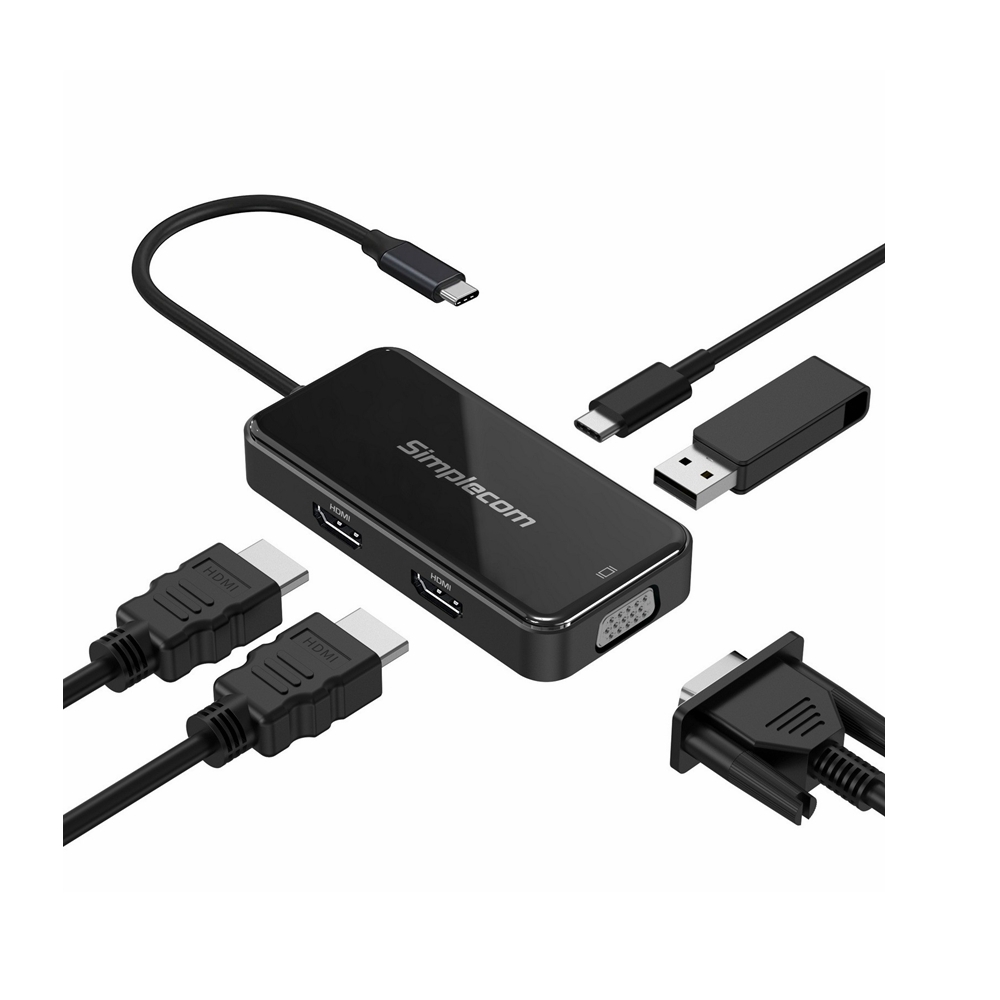

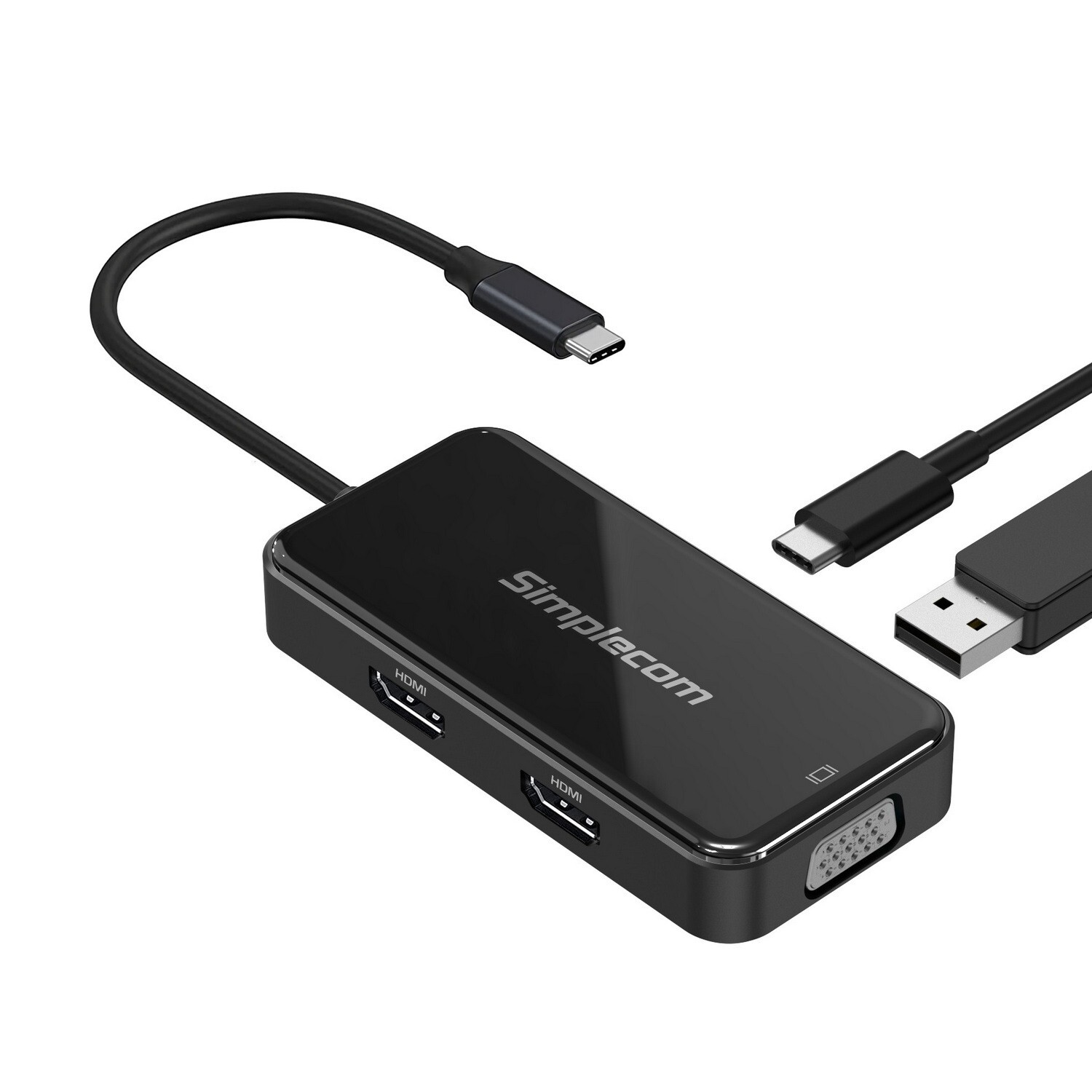

Simplecom DA451 5-in-1 USB-C Multiport Adapter MST Hub with VGA and Dual HDMI

Features

• Support MST (Multi Stream Transport) for mirror or extended screen mode
• Connect 3 displays to your system through a single USB-C port
• Supports up to 3 mirrored screens or 2 extended screens
• Significantly increase productivity by adding multiple screens
• HDMI supports Ultra HD resolutions up to 4K@30Hz (Single HDMI)
• VGA supports Full HD resolutions up to 1080p@60Hz
• Supports Power Delivery up to 100W charging via the USB-C port
• USB-A SuperSpeed port supports data transfer rate up to 5Gbps
• Plug and Play, no Driver or software required
• MST supports Windows only, MacOS supports one extended screen only

Specifications

• Material: Plastic, Aluminum
• Interface: USB-C Male

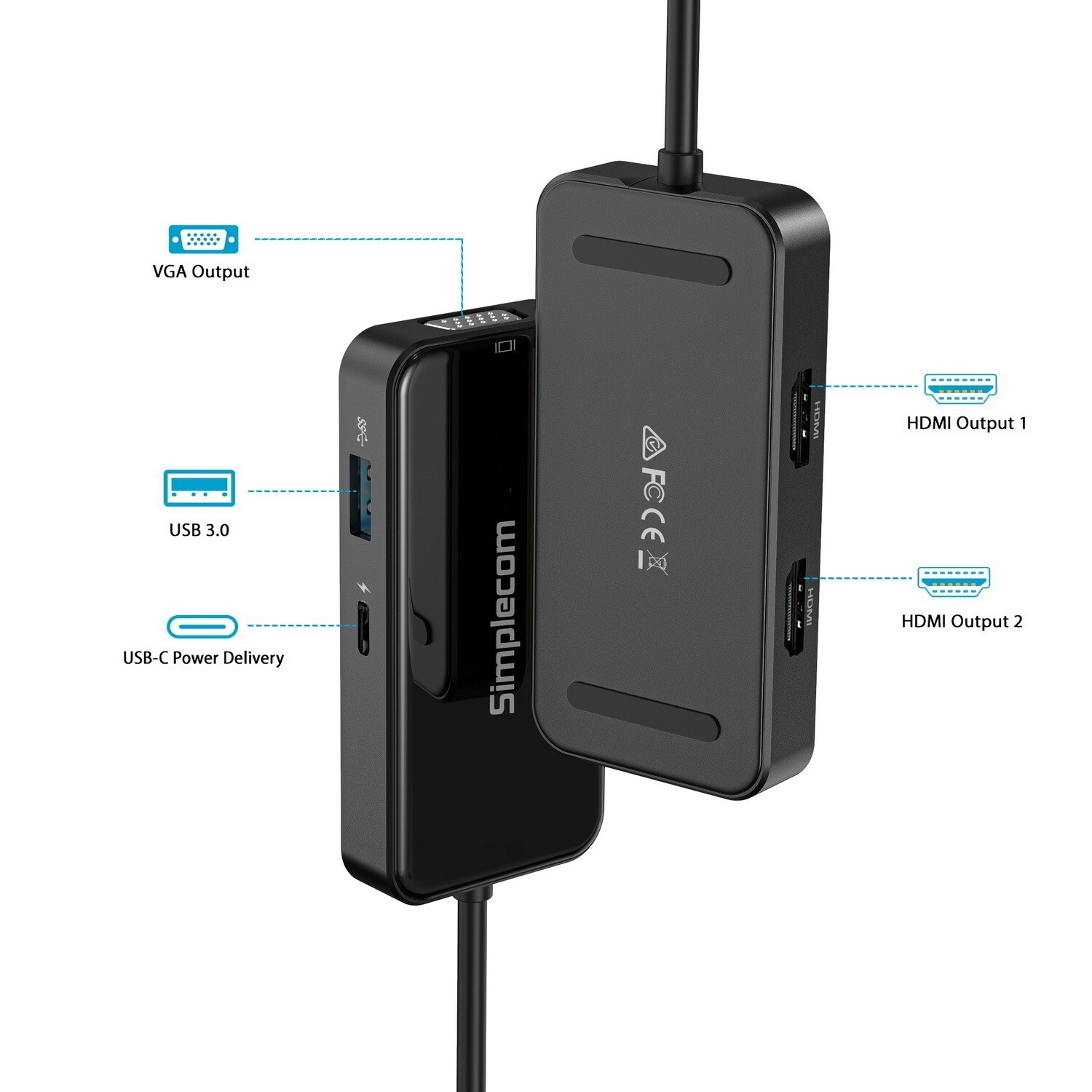

• Connection Ports: 2x HDMI, VGA, USB-A, USB-C PD
• HDMI Resolution: Support up to 3840x2160 at 30Hz (Single HDMI)
• VGA Resolution: Support up to 1920x1080 at 60Hz
• PD Charging: 1x USB-C Female (for charging only), up to 100W
• USB-A Port: 1x USB-A Female (SuperSpeed 5Gbps)
• Operation Temperature: 0 - 50°C
• Cable Length: 15cm
• Dimension: 9.2cm x 4.5cm x 1.6cm
• Weight: 60g

System Requirements

• Available USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support
• Windows 8 or above for MST and 2 Extended Screen support
• MacOS does not support MST technology and will only support one extended mode

Important Note

• Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
• Screen resolution will be limited to 1080p when two HDMI monitors are connected
• Screen resolution will be limited to 1080p when VGA port is connected
• The USB-C Female port is for PD Charging only, not for data transfer
• Please connect power delivery adapter when power is not enough
• USB-A port is not suitable for charging iPad, tablet or other high power USB devices
