DESCRIPTION

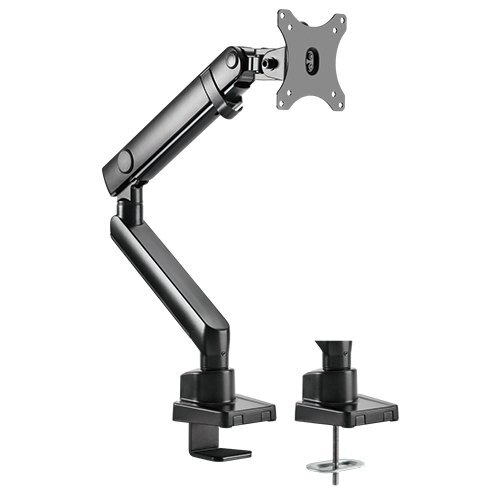

Brateck Single Monitor Aluminum Slim Mechanical Spring Monitor Arm For Most 17"-32"
Brateck’s LDT20-C012 Single Monitor Aluminum Slim Mechanical Spring Monitor Arm comes with Top Fix fitting, which means this type of arm is perfect for limited space underside of the desktop. Its optimizing elbow spring gauge offers the performance and quality needed for weight adjustment. Quick-release VESA plate of exquisite structure and detachable joints make it an ideal support for longer life and easy installation.

FEATURES

Installs from Top Side: installs entirely from above the desk surface
Built-in Spring Tension Gauge: for perfect weight adjustments
Quick-Release VESA Plate: for easy installation
Smooth Arm Insertion: ensures easy installation
Spring-Assisted Mechanism: allows to easily move up and down
Two Mounting Options: both desk clamp and grommet are included

SPECIFICATION

Product Category: Mechanical Spring Monitor Arm
Rank: Premium
Material: Aluminum,Plastic,Steel
Surface Finish: Powder Coating
Color: Matte Black

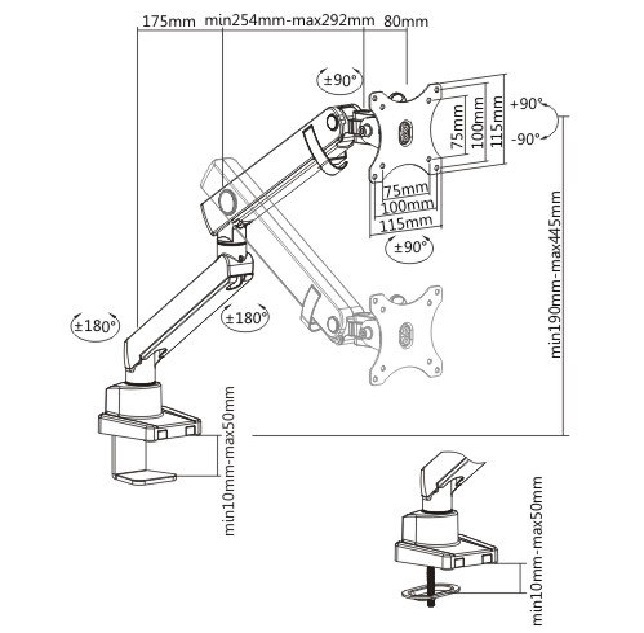

Dimensions: 115x561x520mm (4.5"x22.1"x20.5")
Fit Screen Size: 17"-32"
Fit Curved Monitor: Yes
Screen Quantity: 1
Weight Capacity (per screen): 0~8kg (0lbs~17.6lbs)
VESA Compatible: 75x75,100x100
Tilt Range: +90°~-90°
Swivel Range: +90°~-90°
Screen Rotation: +90°~-90°
Arm Full Extension: 467mm (18.4")
Installation: Grommet,Clamp
Suggested Desktop Thickness: Clamp：10~50mm Grommet：10~50mm (Clamp：0.39"~2" Grommet：0.39"~2")
Quick Release VESA Plate: Yes
Cable Management: Yes
