DESCRIPTION

OVERVIEW

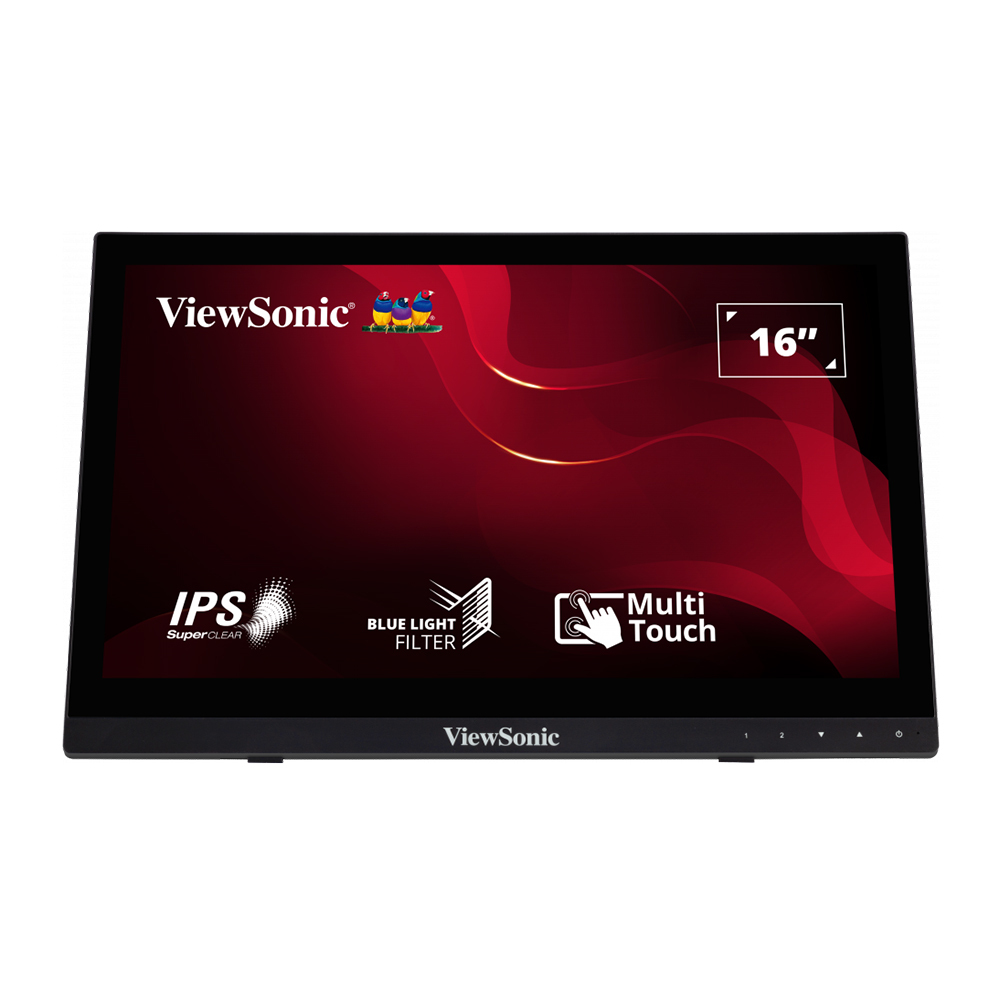

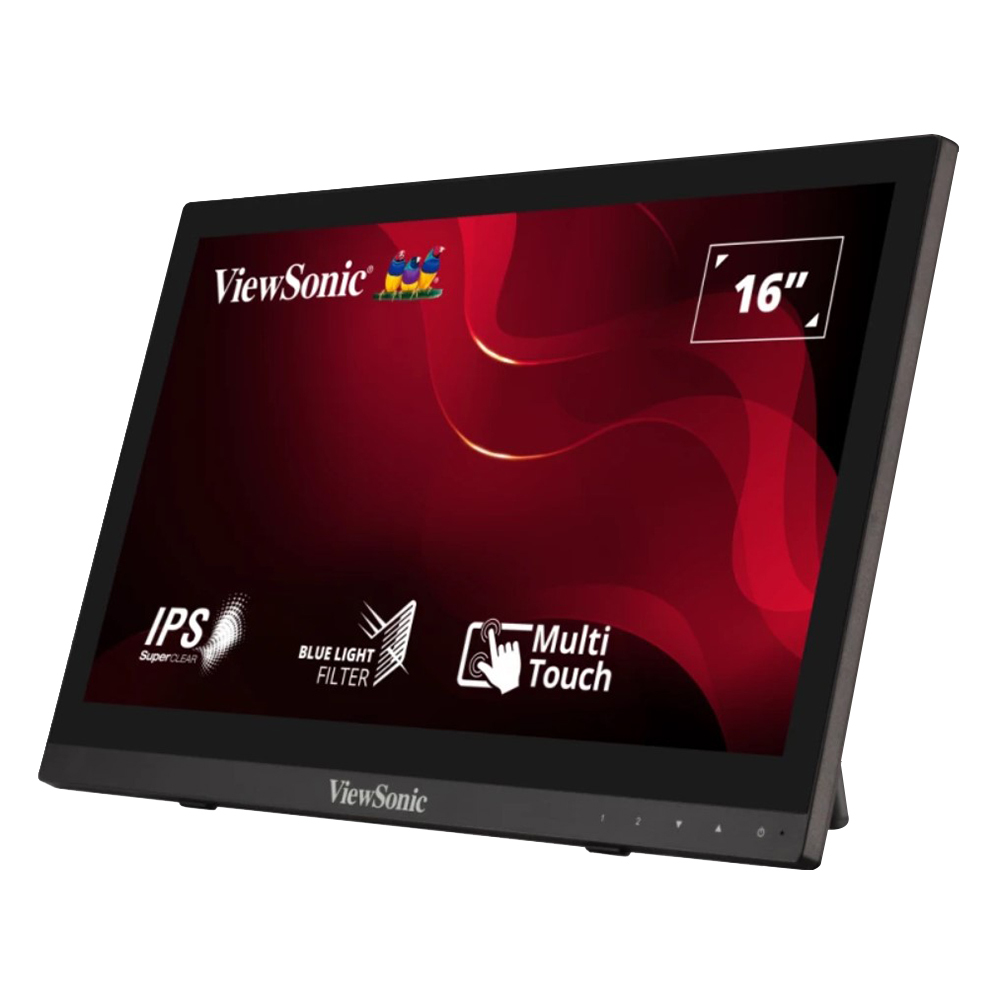

The ViewSonic TD1630-3 is a 16” (15.6” viewable) display with 10-point multi-touch functionality. With an advanced ergonomic design, the TD1630-3 can tilt or lay flat to give users maximum comfort. Delivering touchscreen versatility, this display offers fantastic flexibility for retail or business settings, while VGA and HDMI inputs provide ample connectivity. Compatibility with a wide range of operating systems, including Windows 10/11 and Linux versions*, along with dual integrated speakers, make this intuitive touchscreen a highly accurate, ultra-responsive touch experience that is ideal for interactivity in a retail or business settings.
*Supports Windows 7/8/10/11 , Linux Kernel 4.X/3.X

16” 10-point Touch Screen Monitor
HD 768p Resolution
10-point projected capacitive touch
HDMI and VGA inputs
Dual integrated speakers
Durable, Scratch-resistant Screen


Display Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: TN Technology
Resolution: 1366 x 768
Resolution Type: WXGA (Wide XGA)
Static Contrast Ratio: 500:1 (typ)
Dynamic Contrast Ratio: 10M:1
Light Source: LED
Brightness: 190 cd/m² (typ)
Colors: 262K
Color Space Support: 6 bit true
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 12ms
Viewing Angles: 90º horizontal, 60º vertical
Backlight Life (Hours): 15000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Color Gamut: NTSC: 45% size (Typ)
sRGB: 67% size (Typ)
Pixel Size: 0.252 mm (H) x 0.252 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 0.83mm
Compatibility
PC Resolution (max): 1366x768
Mac® Resolution (max): 1366x768
PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
Mac® Resolution (min): 1366x768

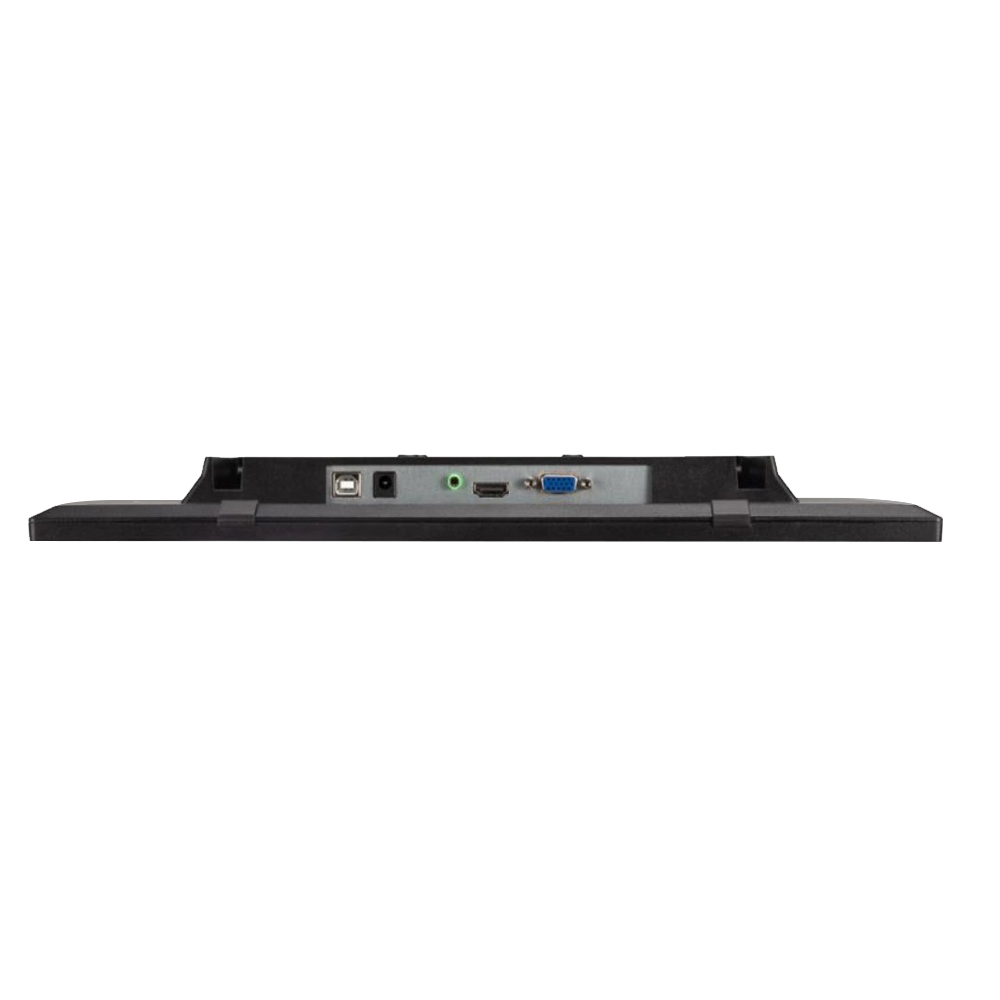

Connector
VGA: 1
USB 2.0 Type B: 1
3.5mm Audio In: 1
HDMI 1.4: 1
Power in: DC Socket (Center Positive)
Internal Speakers: 1Watts x2
Eco Mode (Conserve): 4.3W

Weight 1.3
