DESCRIPTION

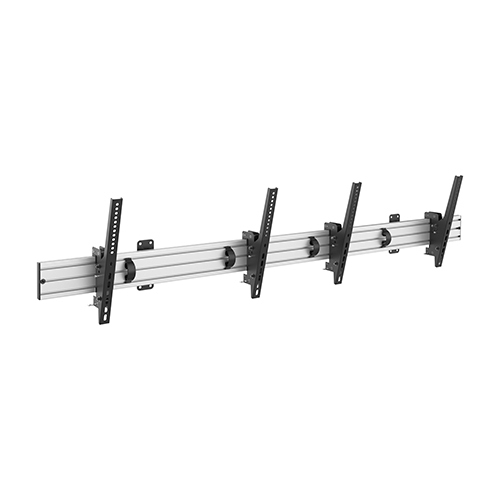

Menu board can provide advanced information delivery across retail environments. Visibility of the information is of greatest importance. Brateck’s new aluminum menu board mount features up to a 20 degree tilt for optimizing viewing ability. Best of all, with the safety pin design, tilt adjustment can never be so easy!

FEATURES

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare

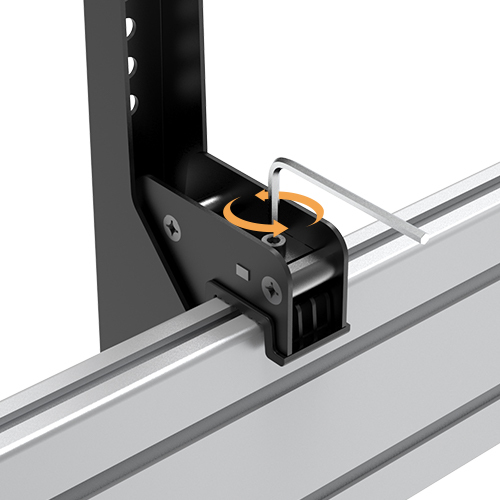

●Built-In Level Adjustment: ensures perfect positioning

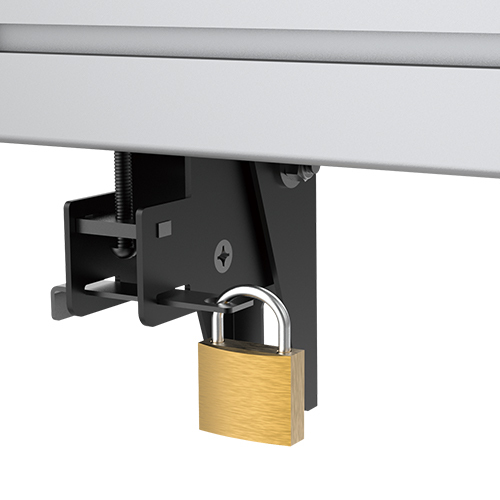

●Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
●Cable Management: keeps everything organized

SPECIFICATIONS

Product Category: Menu Board Wall Mount
Rank: Premium
Material: Aluminum,Steel
Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet
Surface Finish: Sand-blasted Aluminum Anodic Oxidation
Color: Fine Texture Grey
Color(Accessory): Fine Texture Grey
Dimensions: 2009x142x440mm (79.1"x5.6"x17.3")
Fit Screen Size: 45"-55"
VESA Compatible: 200x200,400x200,300x300,400x400,600x400
Max. Mounting Hole: 600x400
Weight Capacity(Per Screen): 50kg (110lbs)
Screen Qty: 2x1
Strength Tested: 4 Times Approved
Profile: 142mm (5.6")
Fine Adjustment(Depth/Height): 0mm/5mm (0"/0.2")
Tilt Range: 0°/-5°/-10°/-15°/-20°
Installation: Solid Wall
Direction Indicator: Yes
Cable Management: Yes
Anti-theft: Yes
Bubble Level: No
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
