DESCRIPTION

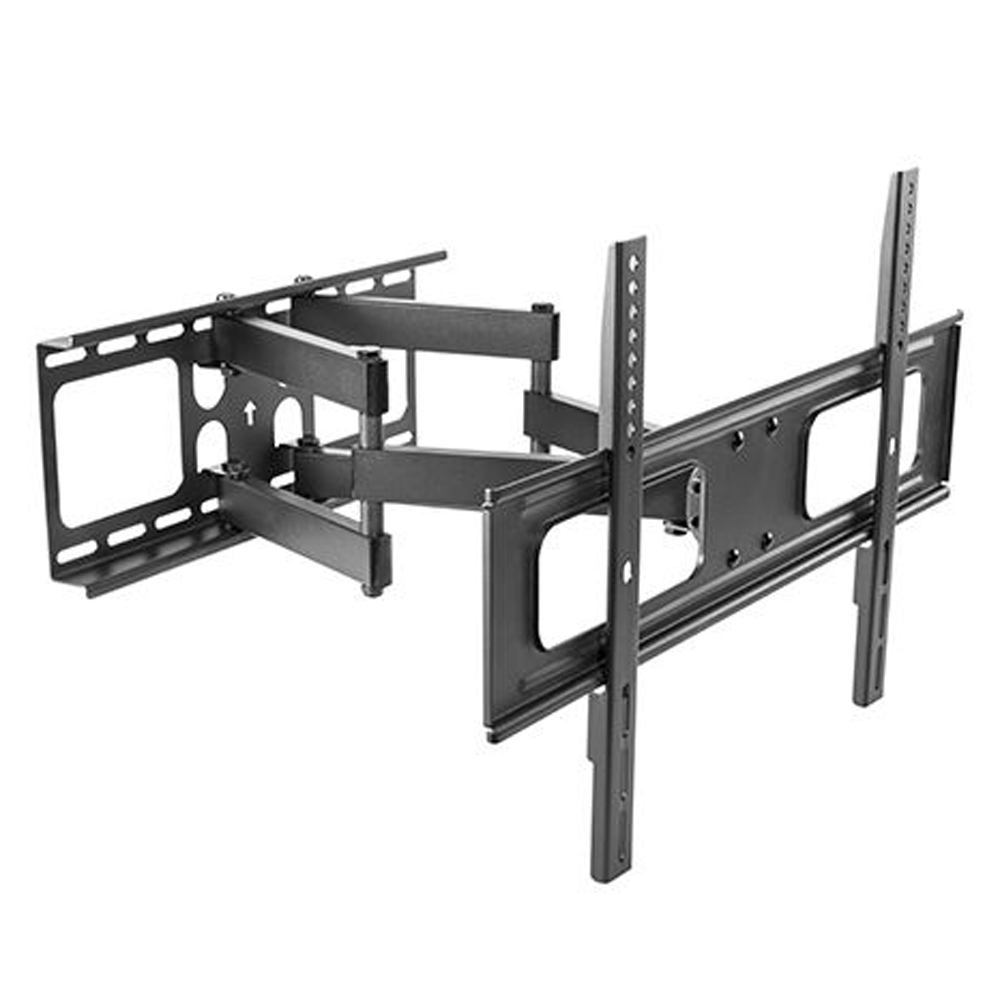

The LPA36-466 is a dual-arm full-motion wall mount for curved & flat panel TVs up to 70", 50kg/110lbs. This mount extends out 510mm from wall and allows TVs to turn 60 left or right. Full motion allows maximum flexibility — tilts and swivel your TV for easy viewing from any seat in a room. Post-installation level adjustment allows the TV to “roll" up to 3 clockwise and counterclockwise to ensure it is perfectly level. Integrated cable management system keeps cables organised and protected. Wide wall plate fits for 406/450mm stud installation.

FEATURES

●Free-Tilting Design: for multiple monitor viewing angles
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Built-In Level Adjustment: ensures perfect positioning


SPECIFICATION

Product Category: Full-motion TV Wall Mount
Rank: Standard
Material: Steel
Surface Finish: Powder Coating
Dimensions: 510x660x430mm (20.1"x26"x16.9")
Fit Screen Size: 37"-70"
Fit Curved TV: Yes
Mounting Hole Pattern : Universal
VESA Compatible: 200x200,300x300,400x200,400x400,600x400
Max. VESA: 600x400
Weight Capacity: 50kg (110lbs)
Strength Tested: 3 Times Approved
Profile: 64mm-510mm (2.5"-20.1")
Tilt Range: -20°~+10°
Swivel Range: -60°~+60°
Screen Level: -3°~+3°
Screen Freely Tilting: Yes
Installation: Solid wall, Double Stud(406mm), Double Stud(450mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
AV Component Shelf: No
Cable Management: No
Anti-theft: No
Power Supply: No
Accessory Kit Package: Compartment Polybag
