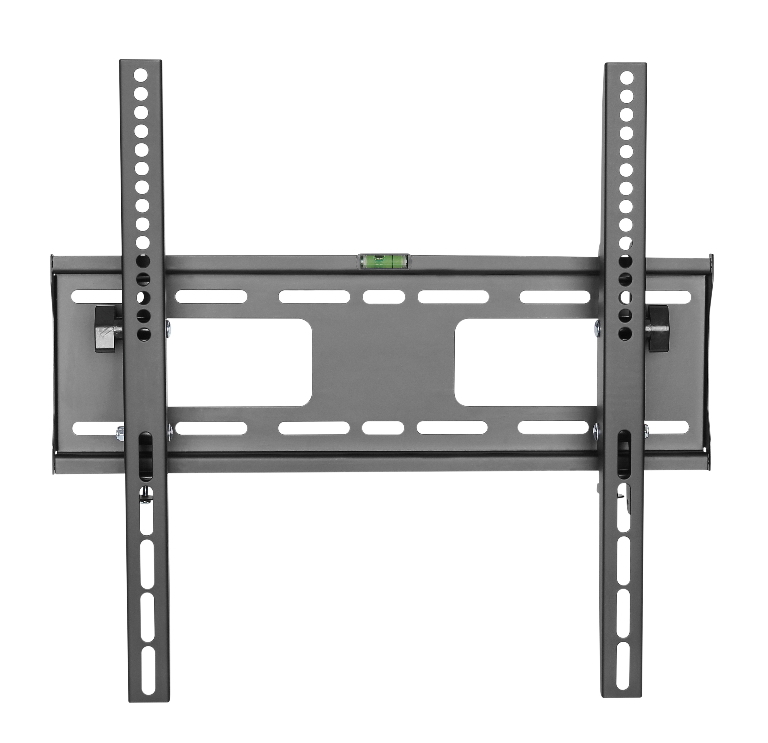

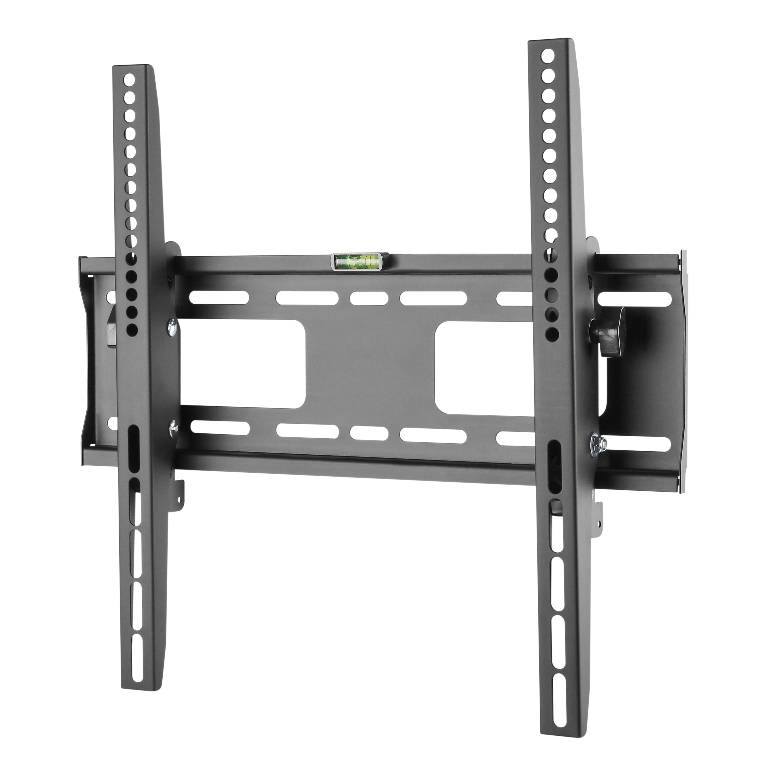

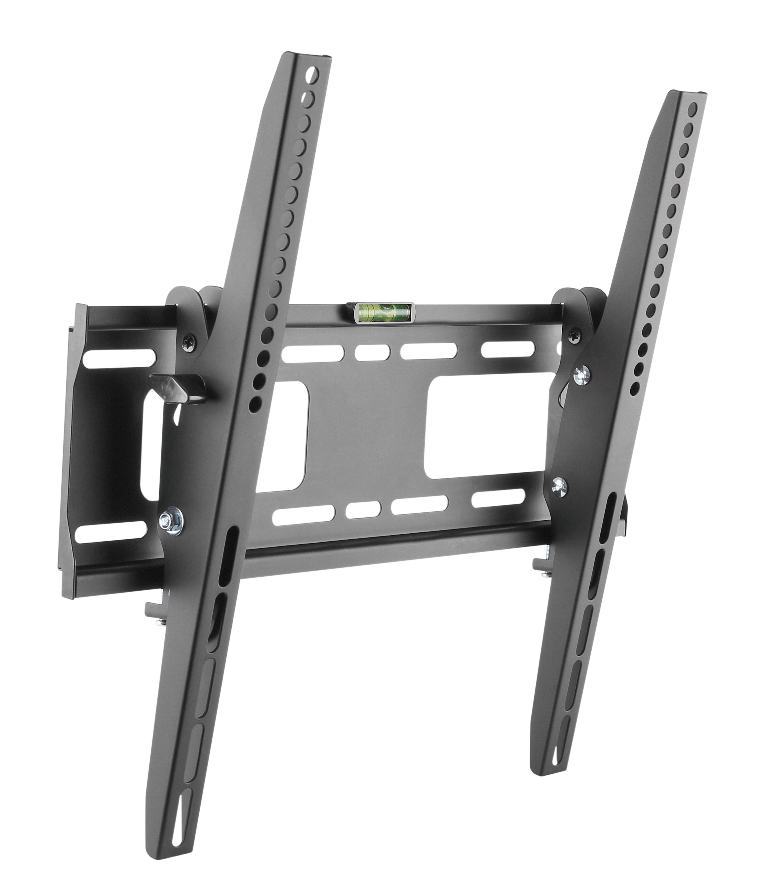

DESCRIPTION

Easy to use and install, the LP42-44DT is design to fit most 32-55 LED, LCD Flat Panel TVs up to 50kgs/110lbs. A tilting mount is recommended when reflections from windows or lighting interfere with TV viewing or when multiple viewing angles are desired. Adjustable structure allows freely tilting for 5°up and 10°down for viewing ease and enjoyment. Lateral shift allows the TV to move left and right on the wall plate so it's placed exactly where you want it. Compatible with VESA hole up to 400x400.

FEATURES

●Free-Tilting Design: for multiple monitor viewing angles
●Easy Assembly: Installation is as easy as 1-2-3
●Lateral Shift Brackets: enable fast alignment

SPECIFICATION

Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel,Plastic
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.059" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black

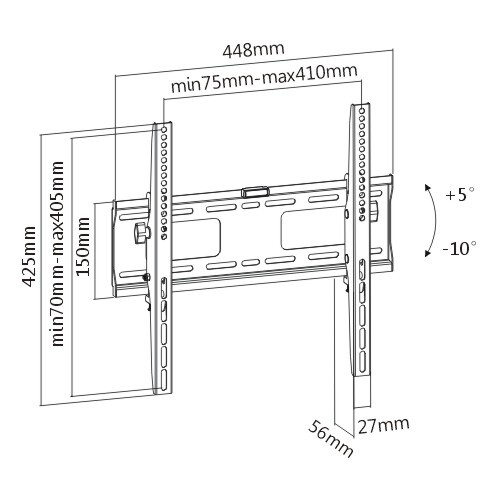

Dimensions: 448x425x56mm (17.6"x16.7"x2.2")
Fit Screen Size: 32"-55"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal
VESA Compatible: 200x200,300x300,400x200,400x400
Max. VESA: 400x400
Weight Capacity: 50kg (110lbs)
Strength Tested: 3 Times Approved
Profile: 56mm (2.2")
Tilt Range: ＋5°～-10°
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Certification: GS
