DESCRIPTION

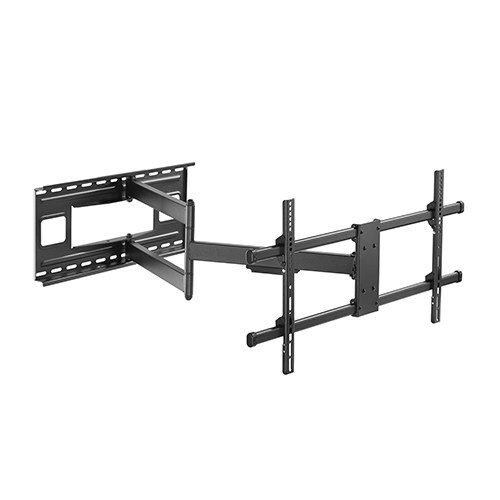

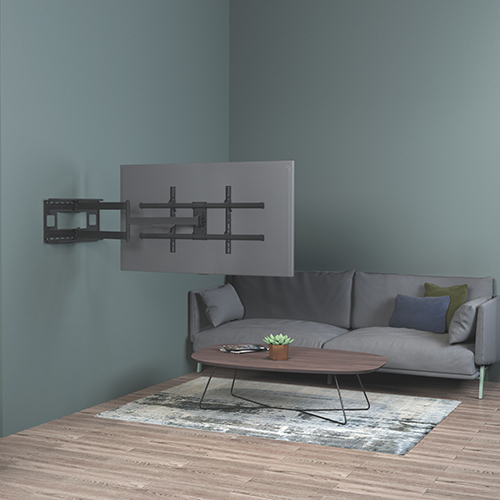

Featuring 1015mm (40")of arm extension and almost limitless swivel capability, the LPA49-483XLD offers maximum viewing range, meeting almost any mounting challenge. Heavy-duty arms provide strong support for larger and heavier TVs up to 50kg (110lbs).TV installation and removal is made easy through a unique quick-release mechanism. Toolless tilting delivers optimal viewing angles. Integrated cable management creates a clean appearance.

FEATURES

●Extending Arm: provides a wide range of viewing angles
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Free-Tilting Design: for multiple monitor viewing angles
●Quick-Release Latch: locks/unlocks the display in place
●Cable Management: elegantly hides any cables that are attached to displays

SPECIFICATION

Product Category: Fixed TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet,VESA Panel THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet,VESA Panel THK=0.059" cold-rolled sheet)
Pipe Size: 50x25x1.5mm Square Steel Tube (2"x0.98"x0.059" Square Steel Tube)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 1015x885x430mm (40"x34.8"x16.9")
Fit Screen Size: 43"-80"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA Only
VESA Compatible: 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400
Max. VESA: 819x410mm
Weight Capacity: 50kg (110lbs)
Strength Tested: 2 Times Approved
Profile: 82~1015mm (3.2"~40")
Tilt Range: +5°~-15°
Swivel Range: +90°~-90°
Screen Level: +3°~-3°
Screen Freely Tilting: Yes
Installation: Double Stud(406mm/450mm/600mm),Solid Wall
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Cable Management: Yes
Bubble Level: Hook-on Bubble
