DESCRIPTION

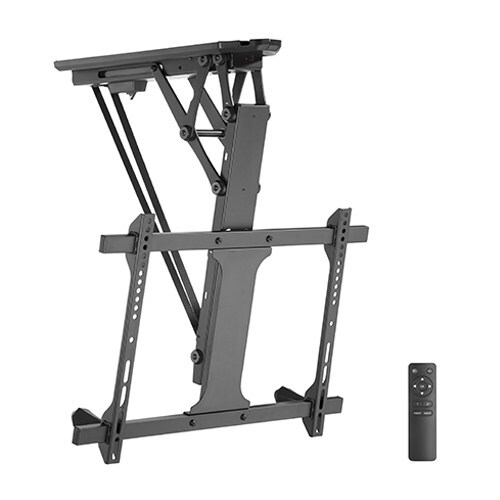

PLB-M0546 Motorized Flip Down TV Ceiling Mount is the perfect choice to saves space for the room with low ceiling (flat and pitched) - retracts and keeps flush to the top. Best of all, combined with the balanced mechanism to stop TV shaking on the ceiling. Quality motor holds TVs up to 70” (35 kg/77lbs) and provides automatic flip up and down function with the press of a button. The convenient RF remote allows operation through walls and from greater distances. Keyhole pattern allows for easy installation and height-adjustment.

FEATURES

●Flip Down Design: allows for easy storage, cleared up space and out-of-way safety
●Powerful Motor: more stable, strong and durable
●Remote Control Included: for easy movements
●Built-In Level Adjustment: ensures perfect positioning

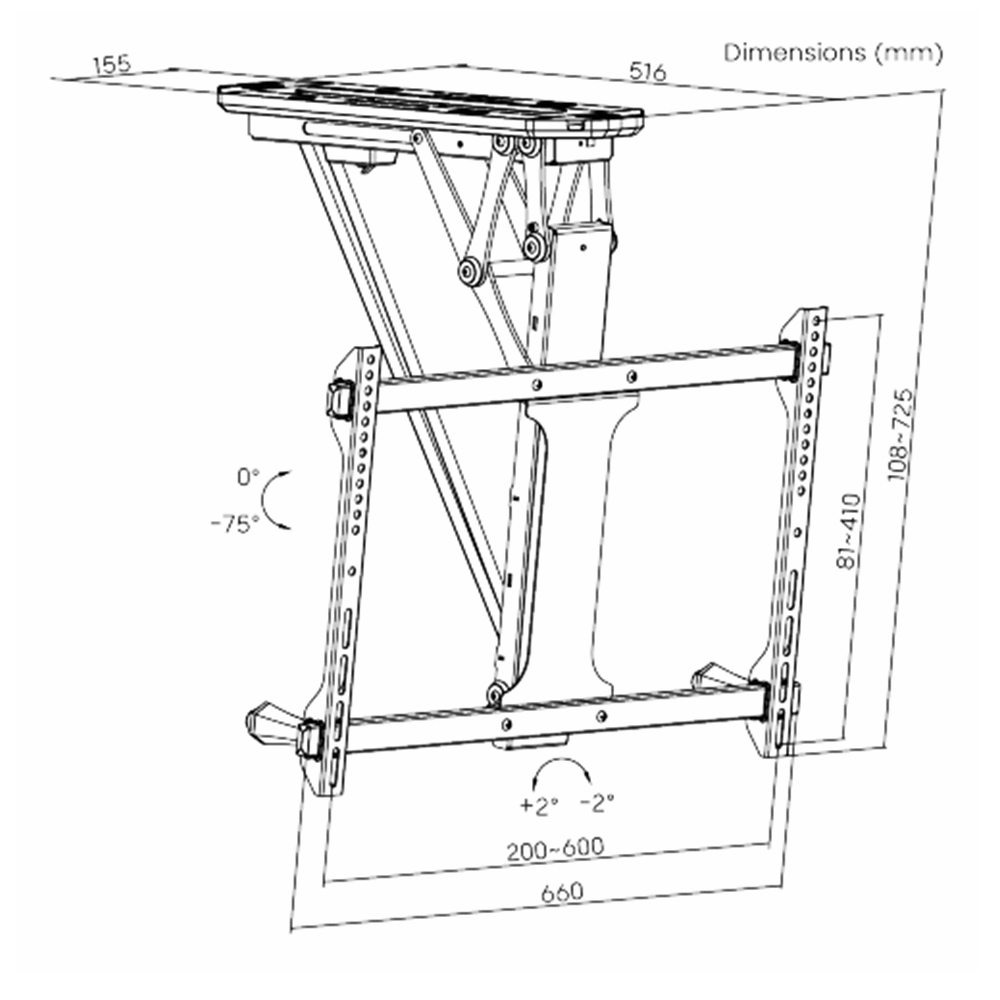

SPECIFICATIONS

Product Category: Motorized TV Ceiling Mount
Rank: Standard
Material: Steel,Plastic
Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet,VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.079" cold-rolled sheet,VESA Panel THK=0.079" cold-rolled sheet,Wall Plate THK=0.079" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black
Fit Screen Size: 32"-70"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA Only
VESA Compatible: 200x100,200x200,300x200,200x400,300x300,400x200,400x300,400x400,600x400
Max. VESA: 600x400
Weight Capacity: 35kg (77lbs)
Strength Tested: 3 Times Approved
Profile: 108mm (4.3")
Tilt Range: 0~-75°
Screen Level: +2°~-2°
Screen Freely Tilting: No
Installation: Ceiling Mounted
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
AV Component Shelf: No
Cable Management: Yes
Anti-theft: No
Power Supply: Input：AC 100~240V,50/60Hz；Output：DC 24V, 1.5A
Power Cord Length: 1.5m (4.9ft)
Controller Type: Radio Frequency(RF) Remote
Bubble Level: No
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Certification: CE,RoHS
