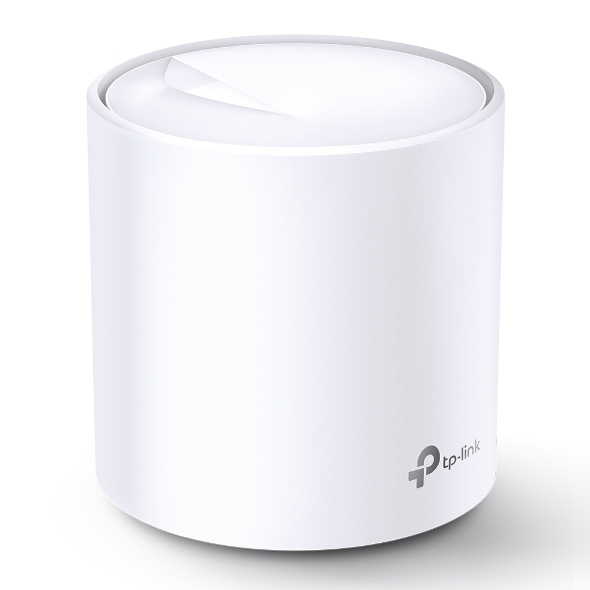

TP-Link Deco X20(1-pack) AX1800 Whole Home Mesh Wi-Fi 6 System

• Faster Connections: Wi-Fi 6 speeds up to 1,800 Mbps—1,201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
• Connect More Devices: OFDMA and MU-MIMO technology quadruple capacity to enable simultaneous transmission to more devices.
• Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger whole home Wi-Fi signal generated by Wi-Fi 6.
• Ultra-Low Latency: Greater reduction in latency enables more responsive gaming and video chatting.
• One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
• Total Security: WPA3 encryption and TP-Link HomeCareTM provide personalized features, including Parental Controls, Antivirus, and Quality of Service (QoS) to ensure a safer online experience.

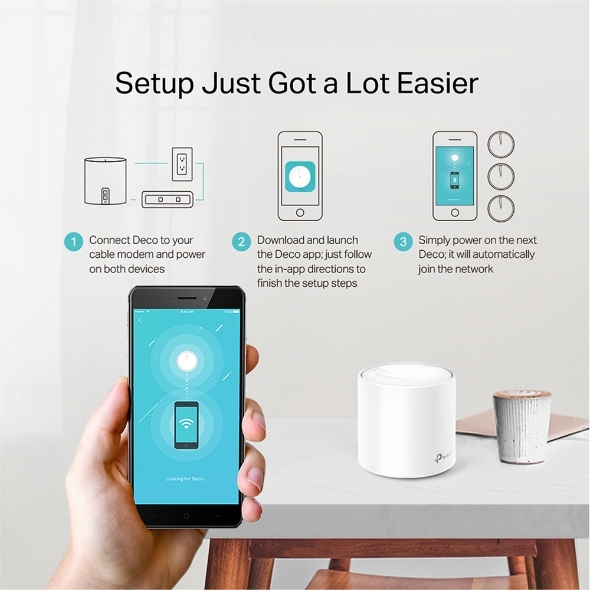

• Setup Made Easier Than Ever: The Deco app walks you through setup step-by-step.

HARDWARE FEATURES

Processor Qualcomm 1 GHz Quad-core CPU
Interface 2 LAN/WAN Gigabit Ethernet Ports
Button 1 Reset button on the underside
Dimensions Φ4.33 in. × 4.49 in. (Φ110 mm × 114 mm)
Antenna 4 internal antennas per Deco unit

WIRELESS FEATURES

Wireless Standards IEEE 802.11 ax/ac/n/a 5 GHz, IEEE 802.11 ax/n/g/b 2.4 GHz
Frequency 5 GHz
2.4 GHz
Signal Rate 1201 Mbps (5 GHz)
574 Mbps (2.4 GHz)
Transmit Power FCC: <30 dBm
CE: <20 dBm (2.4 GHz)
<23 dBm (5 GHz)
Wireless Security WPA-PSK
WPA2-PSK
WPA3
Advanced Functions ● Router/ Access Point Mode
● Optional Ethernet Backhaul
● TP-Link Mesh Technology:
MU-MIMO
OFDMA
1024-QAM
BSS Color
Auto Path Selection
Self-Healing
AP Steering
Band Steering
Beamforming

SOFTWARE FEATURES

Quality of Service WMM
IPv6 Support
WAN Type Dynamic IP/Static IP/PPPoE
Management Local Management, Remote Management
DHCP Server, Client
Port Forwarding Support
Access Control Blacklist
Firewall Security SPI Firewall
Protocols Supports IPv4 and IPv6
