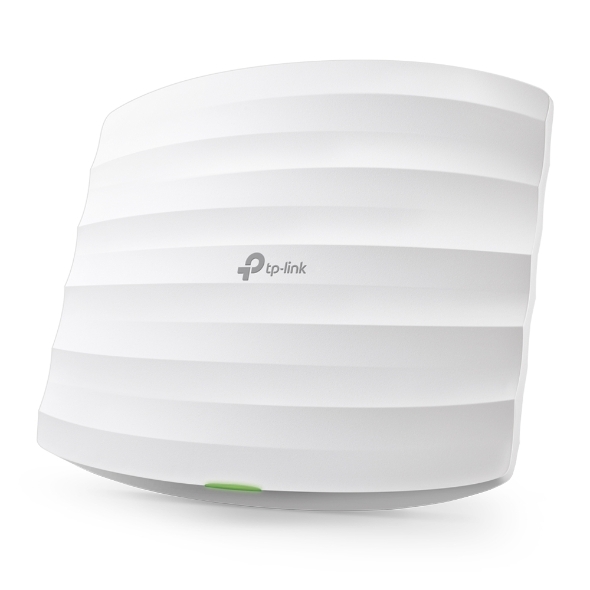

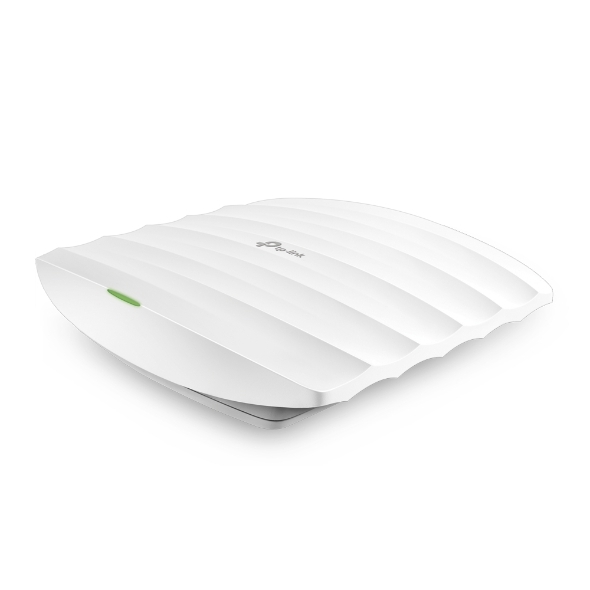

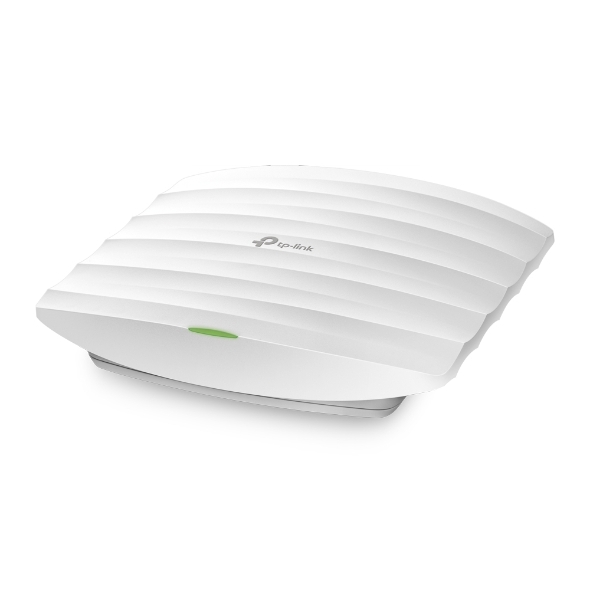

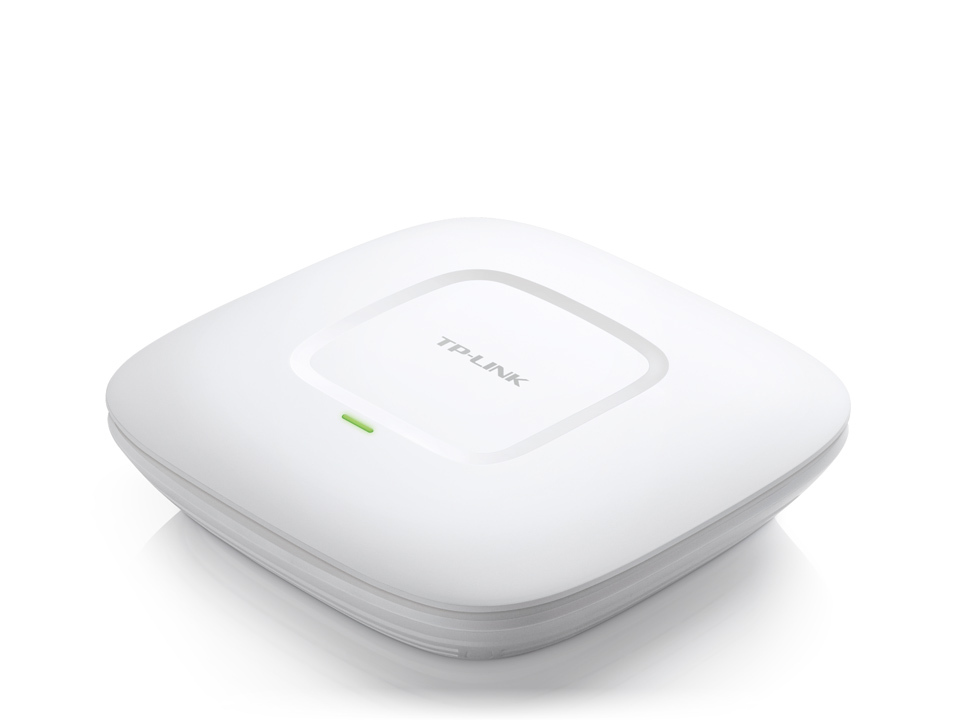

TP-Link EAP110 300Mbps Wireless N300 Ceiling Mount Access Point 1x1Gbps RJ45 PoE 1x Console Port 2x4dBi Omni Internal Antenna

EAP Controller Software enables administrators to easily manage hundreds of EAPs
Supports passive PoE for convenient installation up to 100meters
Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
Captive portal provides one convenient method of authentication for Wi-Fi guests
Multi-SSID divides multiple wireless networks for different users
Enterprise class Wi-Fi security help to decrease network security threats

HARDWARE FEATURES
Interface Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Button Reset
Power Supply 24VDC / 1A Passive PoE Supply
Power Consumption 7.7W
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
Antenna Type Internal 2* 3dBi Omni
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless Functions Multiple SSIDs （Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power CE:
<20dBm
FCC:
<26dBm
MANAGEMENT
EAP Controller Software Yes
Email Alerts Yes
