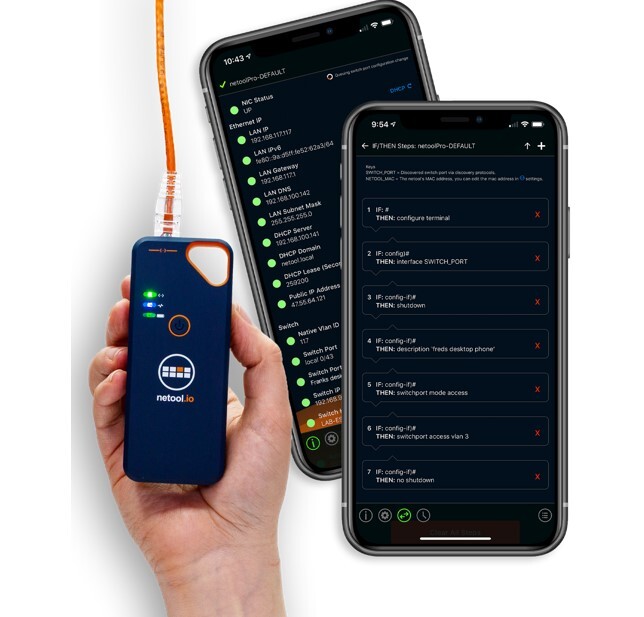

Netool PRO 2 - Configure untagged VLAN id, Tagged VLANs, with IF/THEN, Deploy with auto queue, PCAP Capture

• Supported system: iOS, iPadOS, Android
• Dimensions: 107.95 x 44.45 x 19.05 mm
• Weight: approx. 86 g
• Battery type: Polymer Lithium-ion Cell
• Battery size: 2500 mah 9.25 Wh
• Battery Voltage: 3.7V
• Battery run time: approx. 12 hours
• USB-C (Lighting Bolt): Charging port at 1.0 Amps
• USB-C (Arrows): Data port future use
• BLE 5.0: iOS, iPadOS, Android
• WiFi 2,4 GHz: iOS, iPadOS, Android
• Discovery protocols: LLDP, CDP, EAP, CDPv2, EDP, FDP, SONMP
• Tagged VLAN Ids: 802.1Q
• DHCP: IPv4, IPv6
• STP: Spanning tree via packet sniffing
• LACP: Link Aggregation Control Protocol
• ICMP (Ping): From main app menu
• HTTP/HTTPS: To any custom URL
• Trace Route: To any custom address
• 802.1X: Port authentication
• Certifications: FCC; CE, RoHS, C-Tick, A-Tick
• Public IP: Detect external IP adress of the network
• Netool.io Cloud: Sync discovered data with netool.cloud
• Sharing: Share discovered data via multiple platforms
• Untagged VLAN: Configure untagged VLAN in switch ports with your netool.io Pro 2 with many different action modes like, queue then configure, auto configure or manually invoked.
• Tagged VLAN: Configure tagged VLANs in a switch port that your netool.io Pro 2 is plugged into with many different action modes like, queue then configure, auto configure or manually invoked.
• IF/THEN: Using your own custom syntax and configuration, you can build an IF/THEN statement that will run switch commands based on the response of the switch invoke this IF/THEN statement using many different action modes, queue then configure, auto configure or manually invoked.
