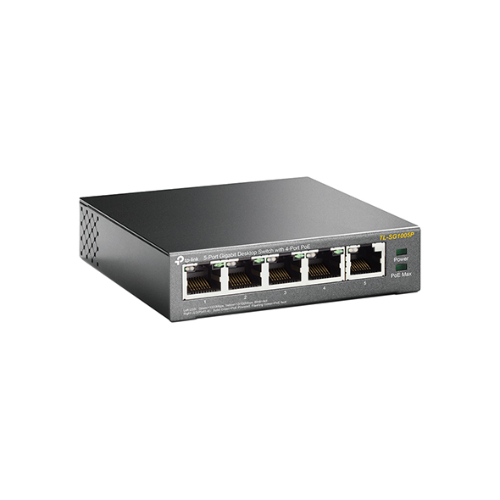

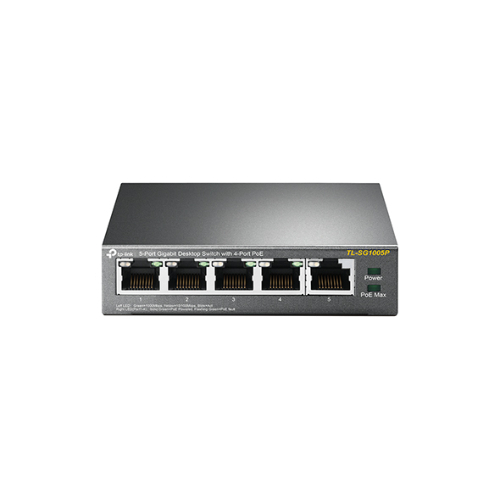

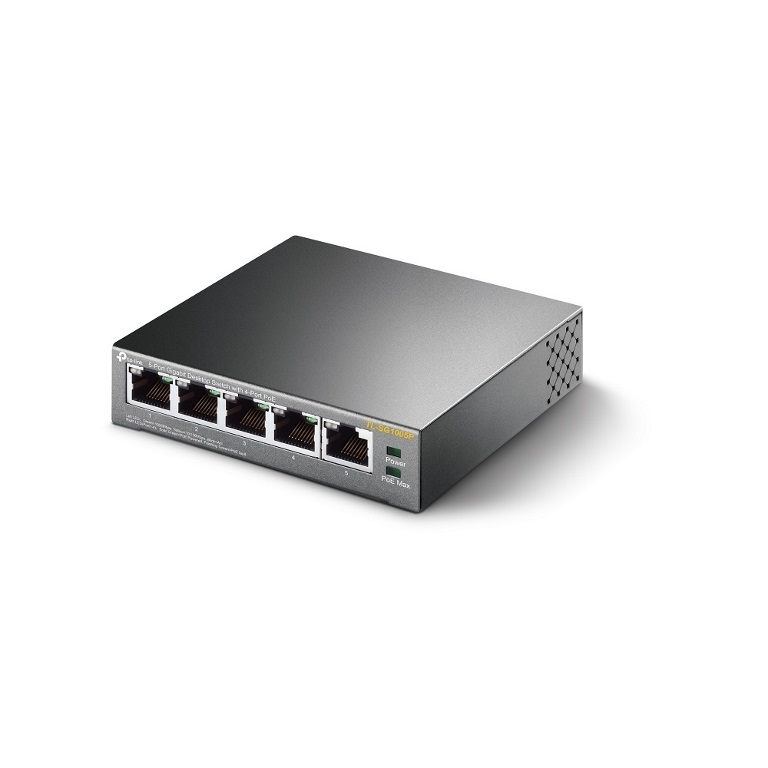

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W

SKU: Leader-NWTL-SG1005P

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W

SKU: Leader-NWTL-SG1005P

$70.35
RRP $79.00
SAVE $8.65
  • check icon In Stock

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W

4.6
Ask a Question
Quantity
-
+

Calculate shipping



Standard Shipping - $7.95
2-6 Business Days With Tracking, Maximum $7.95
Express Shipping - $9.95
Next Business Day Within Australia Post Express Post Network

More From This Category

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W

5 10/100/1000Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 15.4W for each PoE port
Supports PoE Power up to 56W for all PoE ports
Requires no configuration and installation

HARDWARE FEATURES
Interface • 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 65 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption • 4.29 W (220/50 Hz. no PD connected)
• 74.24 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation • 14.63 BTU/h (no PD connected)
• 253.16 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping

24 Month
