TECHNICAL SPECIFICATIONS

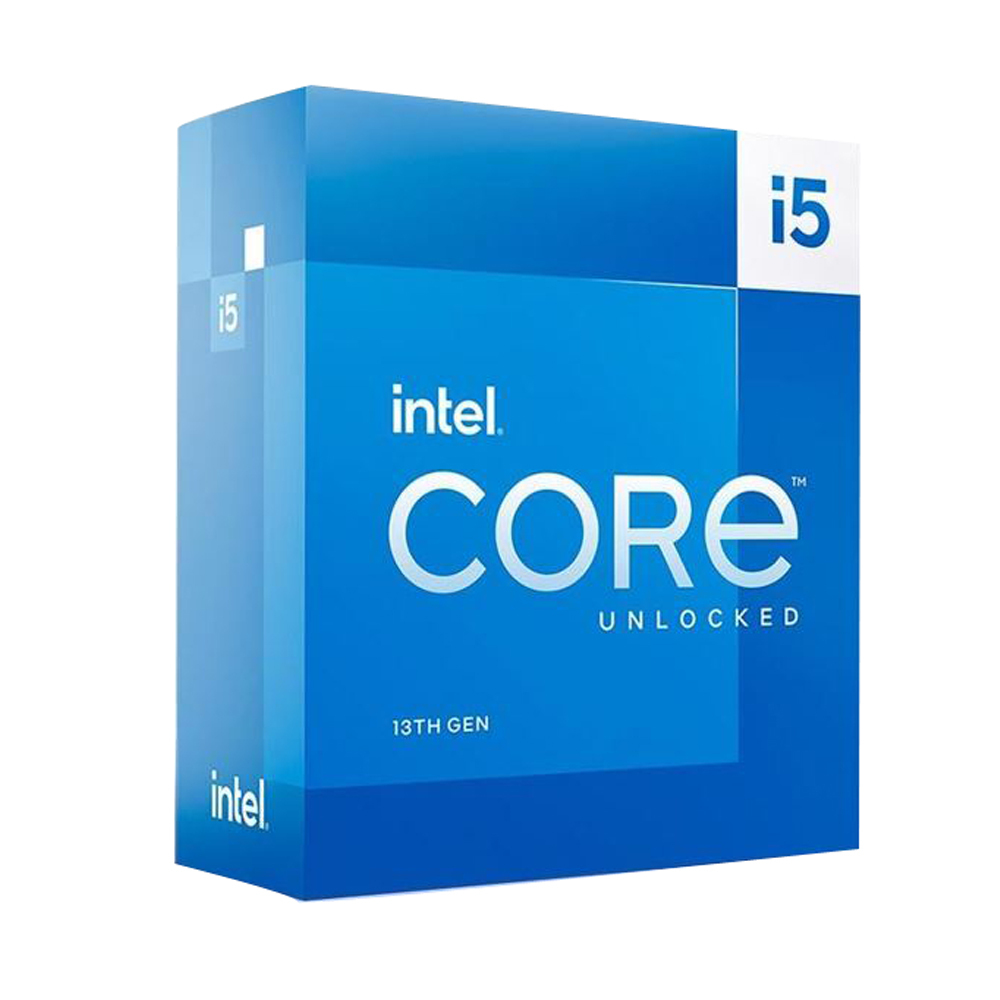

• Product Collection 13th Generation Intel® Core™ i5 Processors
• Code Name Products formerly Raptor Lake
• Vertical Segment Desktop
• Status Launched
• Lithography Intel 7
• Use Conditions PC/Client/Tablet
• CPU Specifications
• Total Cores 14
• # of Performance-cores 6
• # of Efficient-cores 8
• Total Threads 20
• Max Turbo Frequency 5.10 GHz
• Performance-core Max Turbo Frequency 5.10 GHz
• Efficient-core Max Turbo Frequency 3.90 GHz
• Performance-core Base Frequency 3.50 GHz
• Efficient-core Base Frequency 2.60 GHz
• Cache 24 MB Intel® Smart Cache
• Total L2 Cache 20 MB
• Processor Base Power 125 W
• Maximum Turbo Power 181 W
• Embedded Options Available No
• Max Memory Size (dependent on memory type) 128 GB
• Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
• Max # of Memory Channels 2
• Max Memory Bandwidth 89.6 GB/s
• ECC Memory Supported ‡ Yes
• Processor Graphics ‡ Intel® UHD Graphics 770
• Graphics Base Frequency 300 MHz
• Graphics Max Dynamic Frequency 1.50 GHz
• Graphics Output eDP 1.4b | DP 1.4a | HDMI 2.1
• Execution Units 32
• Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
• Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
• DirectX* Support 12
• OpenGL* Support 4.5
• OpenCL* Support 3
• Multi-Format Codec Engines 2
• Intel® Quick Sync Video Yes
• Intel® Clear Video HD Technology Yes
• # of Displays Supported ‡ 4
• Device ID 0xA780
• Direct Media Interface (DMI) Revision 4
• Max # of DMI Lanes 8
• Scalability 1S Only
• PCI Express Revision 5.0 and 4.0
• PCI Express Configurations ‡ Up to 1x16+4 | 2x8+4
• Max # of PCI Express Lanes 20
