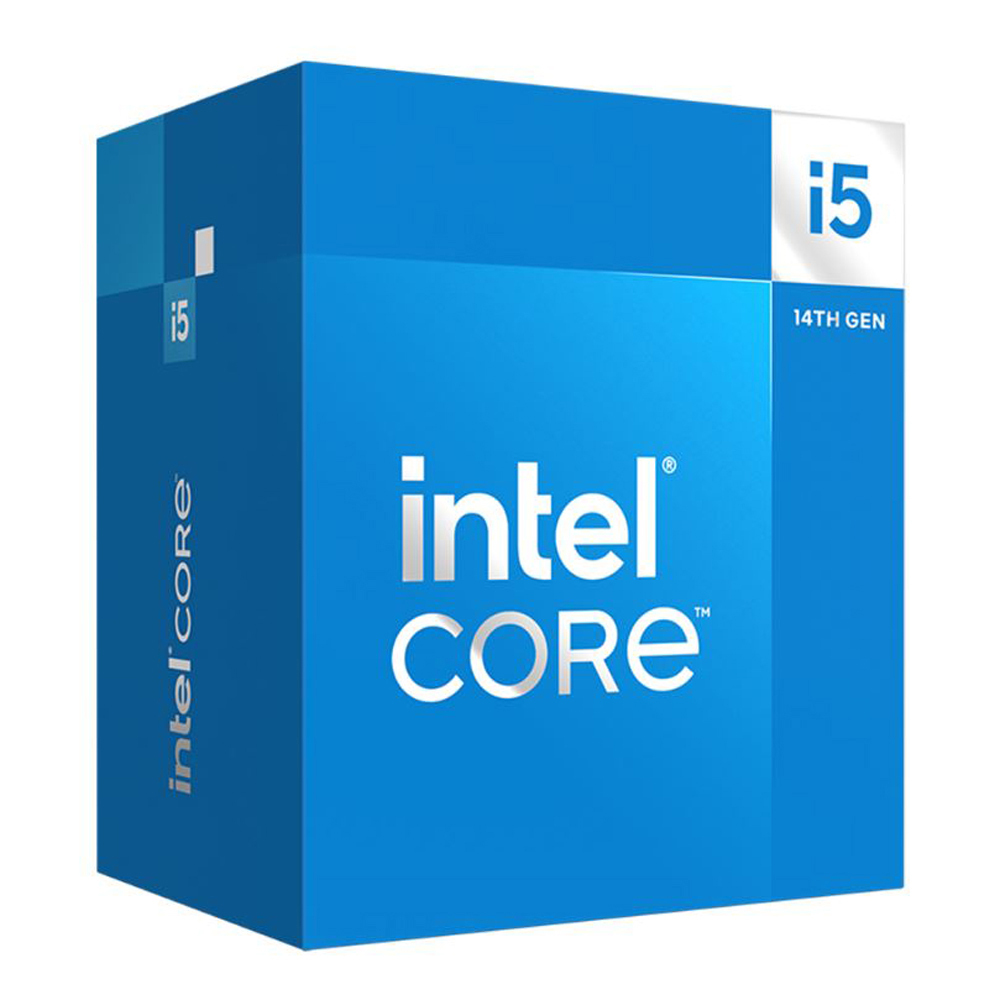

Intel i5 14500 CPU 3.7GHz (5.0GHz Turbo) 14th Gen LGA1700 14-Cores 20-Threads 29.5MB 65W UHD Graphics 770 Retail Raptor Lake with Fan

• Product Collection Intel® Core™ i5 Processors (14th gen)
• Code Name Products formerly Raptor Lake
• Processor Number i5-14500

CPU Specifications

• Total Cores 14
• # of Performance-cores 6
• # of Efficient-cores 8
• Total Threads 20
• Max Turbo Frequency 5 GHz
• Performance-core Max Turbo Frequency 5 GHz
• Efficient-core Max Turbo Frequency 3.7 GHz
• Performance-core Base Frequency 2.6 GHz
• Efficient-core Base Frequency 1.9 GHz
• Cache 24 MB Intel® Smart Cache
• Total L2 Cache 11.5 MB
• Processor Base Power 65 W
• Maximum Turbo Power 154 W

Memory Specifications

• Max Memory Size (dependent on memory type) 192 GB
• Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
• Max # of Memory Channels 2
• Max Memory Bandwidth 76.8 GB/s
• ECC Memory Supported ‡ Yes

GPU Specifications

• GPU Name‡ Intel® UHD Graphics 770
• Graphics Max Dynamic Frequency 1.55 GHz
• Graphics Output eDP 1.4b | DP 1.4a | HDMI 2.1
• Execution Units 32
• Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
• Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
• DirectX* Support 12
• OpenGL* Support 4.5
• OpenCL* Support 3
• Multi-Format Codec Engines 2
• Intel® Quick Sync Video Yes
• Intel® Clear Video HD Technology Yes
• # of Displays Supported ‡ 4
• Device ID 0x4680
