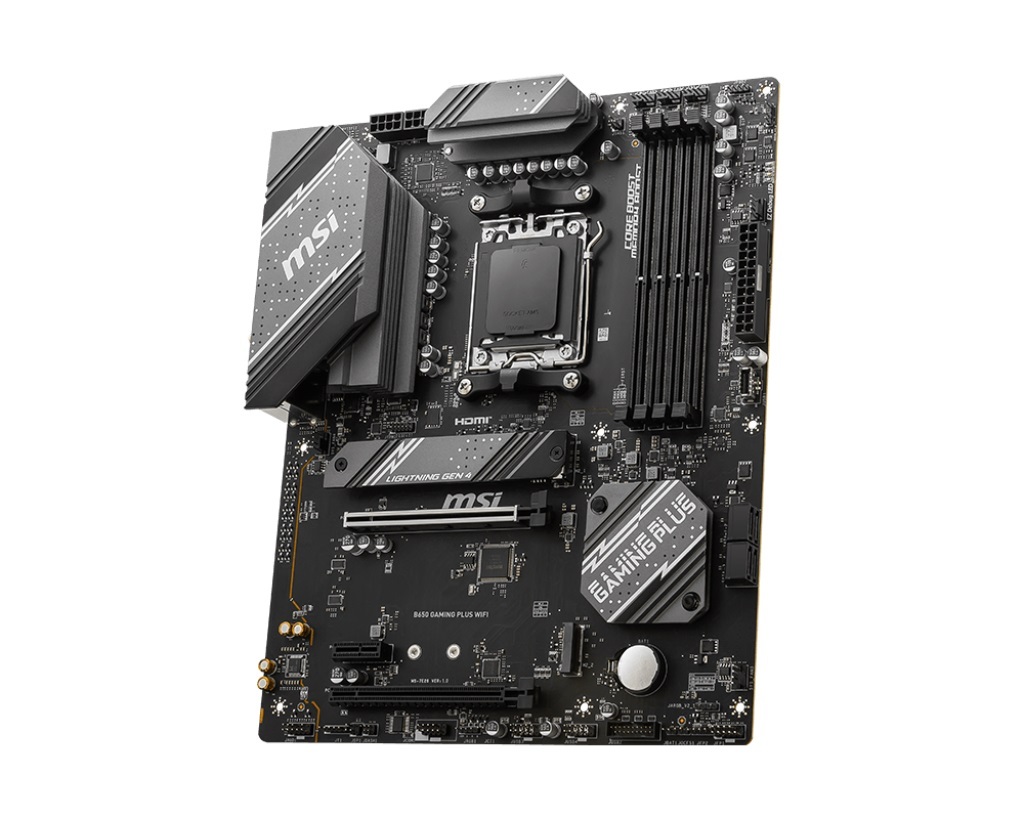

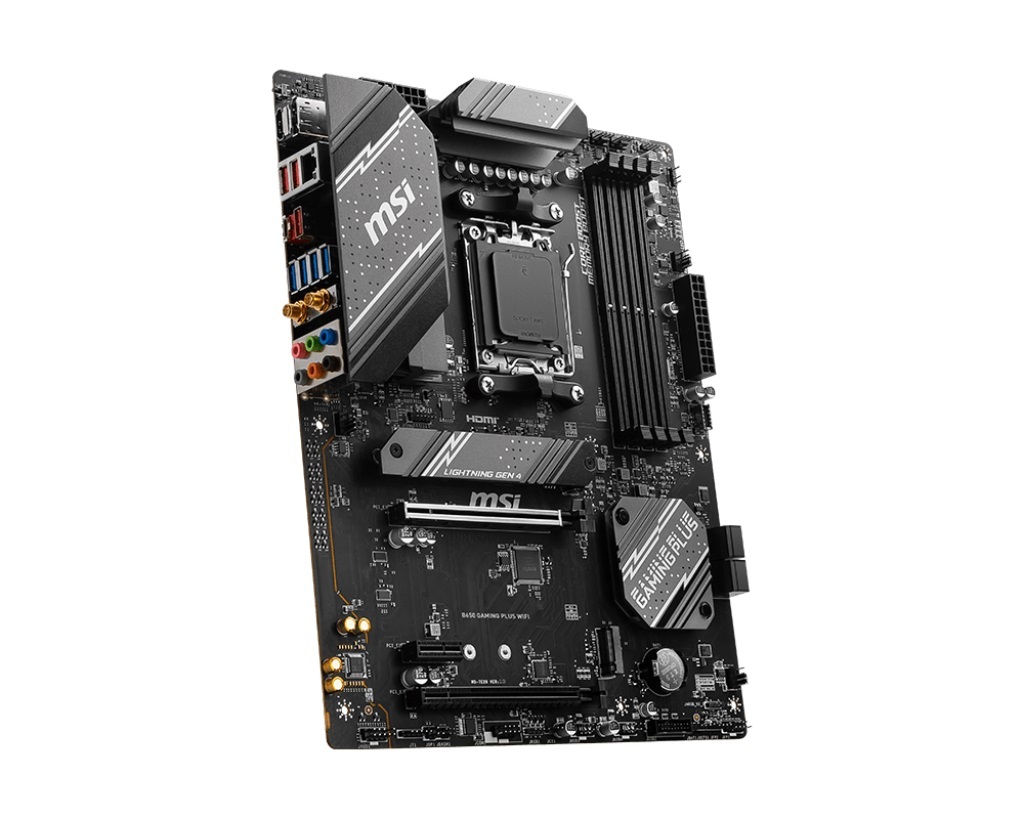

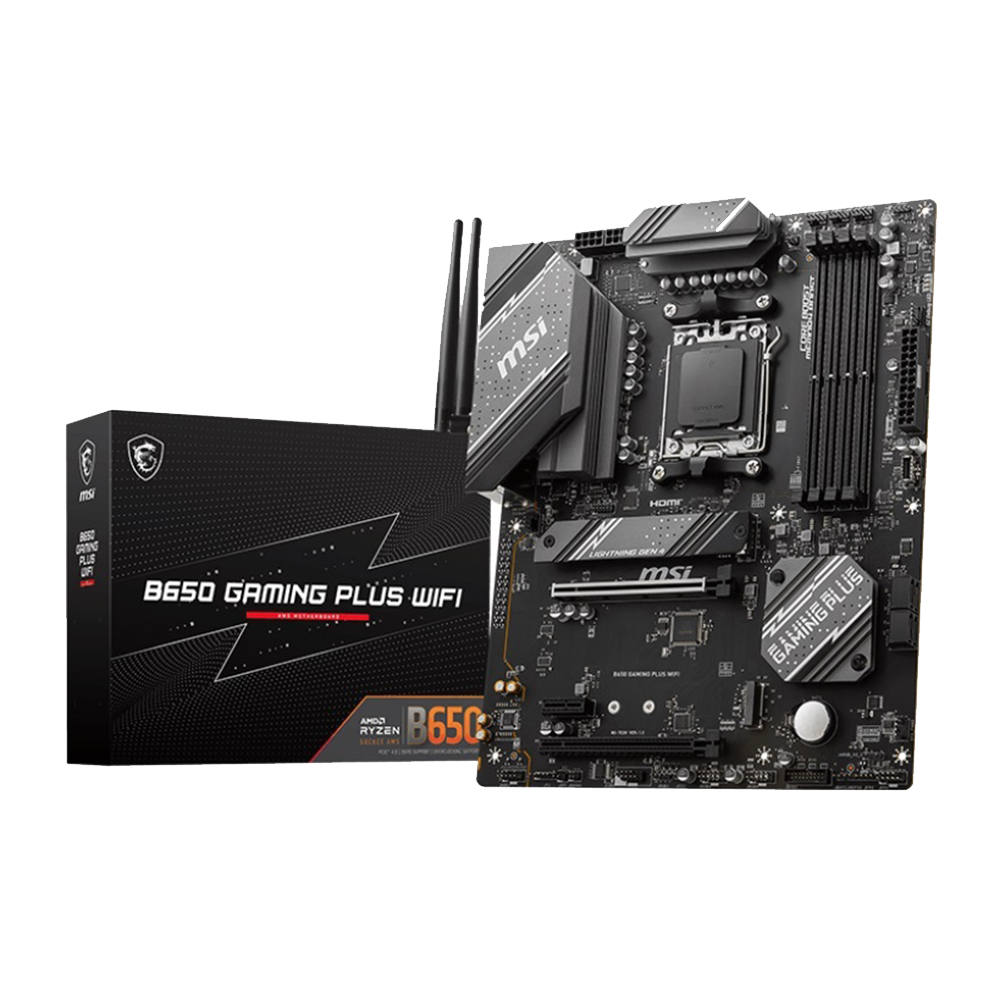

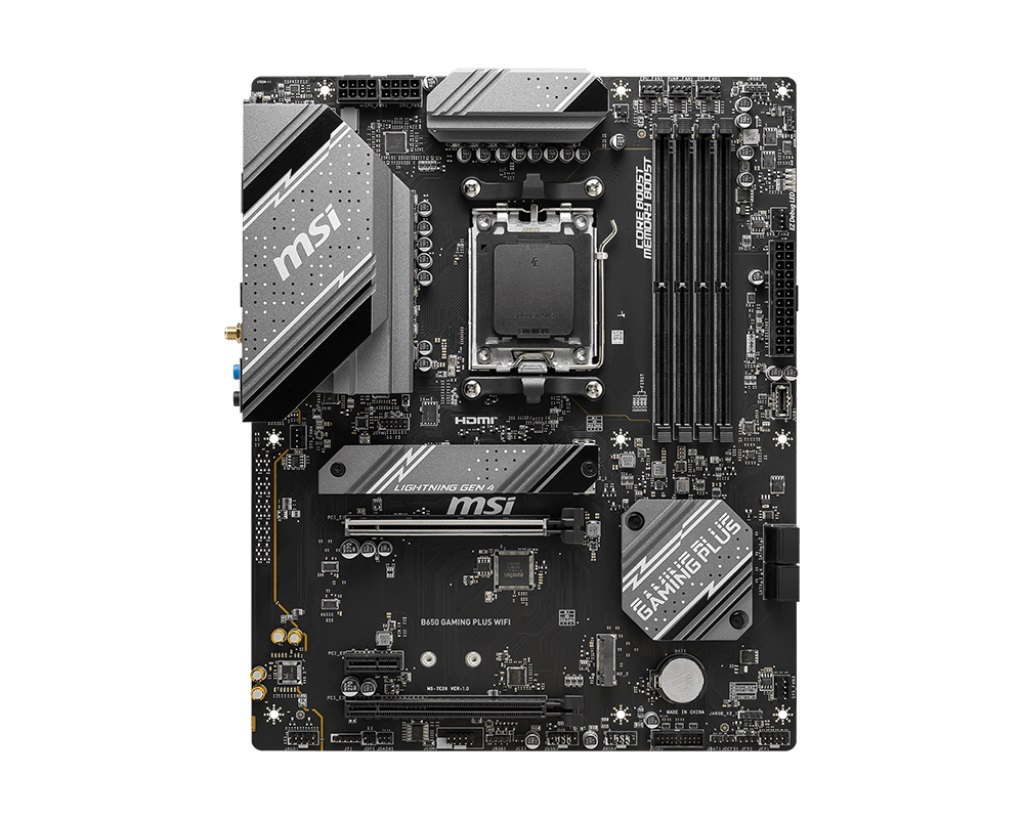

MSI MPG B650 GAMING PLUS WIFI AMD AM5 ATX Motherboard, 4x DDR5 ~192GB, 2x PCI-E x16, 1x PCI-E x1, 2x M.2, 4x SATA, 7x USB 3.2, 1x USB-C

FEATURES:

• Supports AMD Ryzen™ 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
• Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
• Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• High Quality PCB: 6-layer PCB made by 2oz thickened copper

SPECIFICATIONS:
CHIPSET AMD B650
CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
MEMORY 4x DDR5, Maximum Memory Capacity 192GB
ONBOARD GRAPHICS 1x HDMI™1x DisplayPort
EXPANSION SLOT
2x PCI-E x16 slot
1x PCI-E x1 slot

STORAGE 2x M.2 slot

4x SATA 6G port

USB
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

INTERNAL I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

PCB DIMENSION (W × L) ATX 243.84mmx304.8mm
