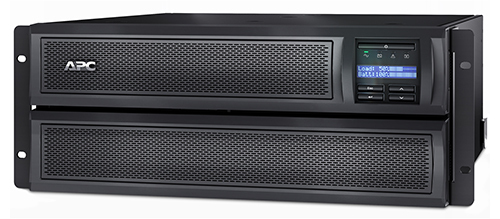

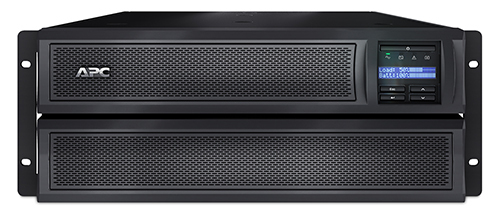

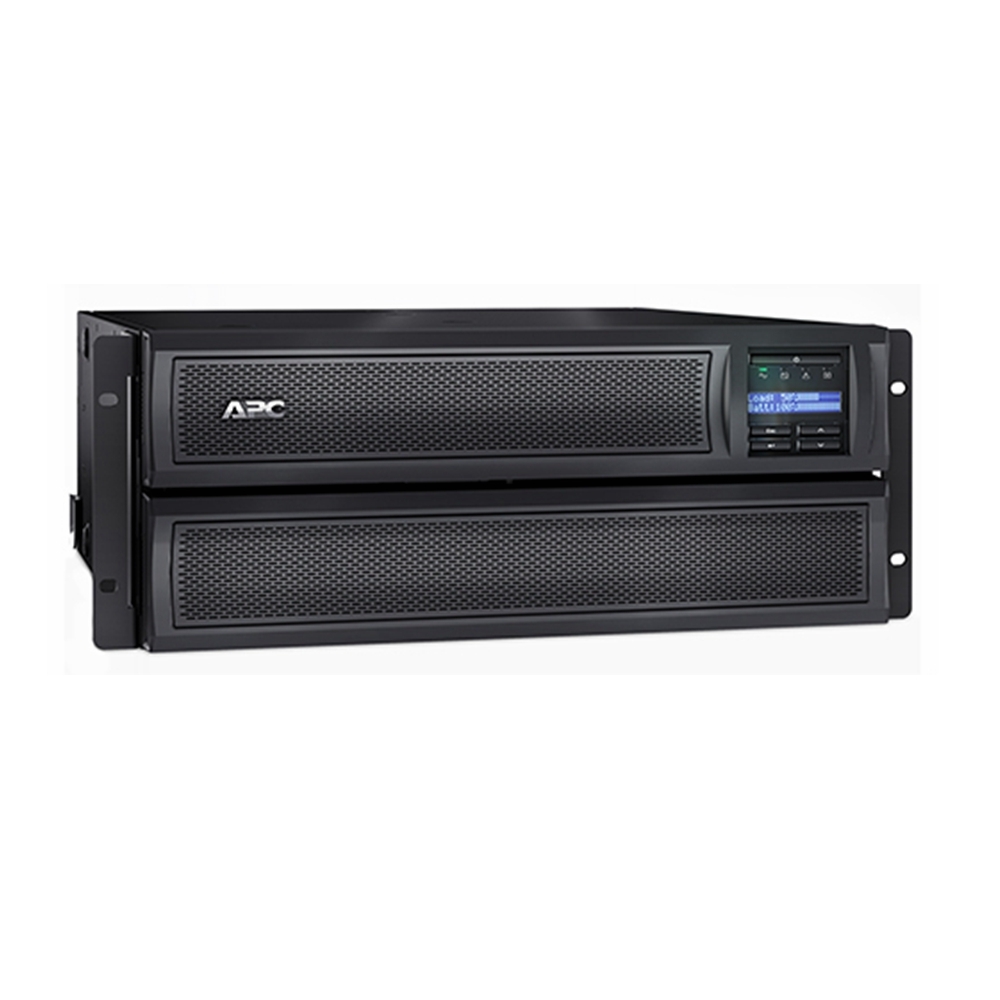

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth

Protect servers, switches, networking devices, and point-of-sale equipment with the APC Smart-UPS X 2200VA. APC Smart-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With premium protection and simplified management, the 2200VA UPS ensures consistent and reliable connectivity at the most critical moments. With 12 outlets and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics.

SPECIFICATIONS

• Main Input Voltage 208 V, 230 V
• Other Input Voltage 220 V, 240 V
• Main Output Voltage 208 V, 230 V
• Other Output Voltage 208 V, 220 V, 240 V
• Rated power in W 1980 W
• Rated power in VA 2200 VA
• Input Connection Type IEC 320 C20
• Schuko CEE 7 / EU1-16P BS1363A British

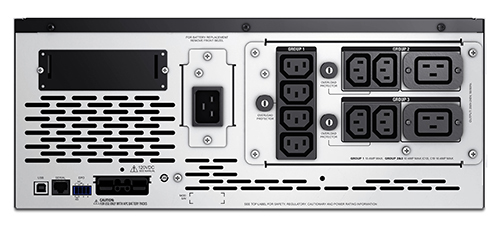

• Output connection type- 8 IEC 320 C13, 2 IEC Jumpers, 2 IEC 320 C19
• Number of rack unit 4U
• Cable length 2.00 m
• Number of cables 1
• Battery type Lead-acid battery
• Provided equipment- CD with software, Documentation CD, Rack mounting support rails, Smart UPS signalling RS-232 cable, User manual, USB cable
• Input voltage limits 140...280 V
• Network frequency 50/60 Hz +/- 3 Hz auto-sensing
• Acoustic level 55 dBA
• Heat dissipation 150 Btu/h
• Operating altitude 0...10000 ft
• Ambient air temperature for operation 0…40 °C
• Ambient air temperature for storage -15…45 °C
• Storage altitude 0.00…15240.00 m
• Relative humidity 0…95 %
• Storage Relative Humidity 0…95 %
• Replacement Battery -APCRBC143
• Compatible PDU- AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW
• Compatible Service bypass panels- SBP16KRMI4U, SBP5000RMI2U, SBP6KRMI2U,SBP3000RMHW, SBP3000RMI
• Compatible Sensors- AP9335T, AP9335TH
• Compatible NMC- AP9613, AP9620, AP9640, AP9641, AP9643,AP9810
• Compatible Mounting- AP9625, AR201, NBAC0302
