Output
• Output power capacity:330 Watts / 550 VA
• Max Configurable Power (Watts): 330 Watts / 550 VA
• Nominal Output Voltage: 230V
• Output Frequency (sync to mains): 47 - 63 Hz
• Output Frequency (not synced):50Hz +/- 0.1% for 50Hz nominal
• Other Output Voltages: 220
• Topology: Standby
• Waveform type:Stepped approximation to a sinewave
• Output Connections: ◦ (4) Australian (selector_surgetitle)
◦ (4) Australian (Battery Backup)

• Output Voltage Tolerance: +/- 5% static and 100% load step
• Transfer Time: 6ms typical: 10ms maximum

Input
• Nominal Input Voltage:230V
• Input frequency: 50/60 Hz
• Input Connections: Australian/Chinese
• Cord Length: 1.83 meters
• Maximum Input Current: 10.0 A

Batteries & Runtime
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
• Typical recharge time: 16 hour(s)
• Replacement Battery: APCRBC110
• Battery Volt-Amp-Hour Capacity: 86
• Runtime: View Runtime Graph
• Efficiency: View Efficiency Graph

Communications & Management
• Control panel: LED status display with On Line: On Battery: Replace Battery and Overload indicators

Surge Protection and Filtering
• Surge energy rating: 310 Joules

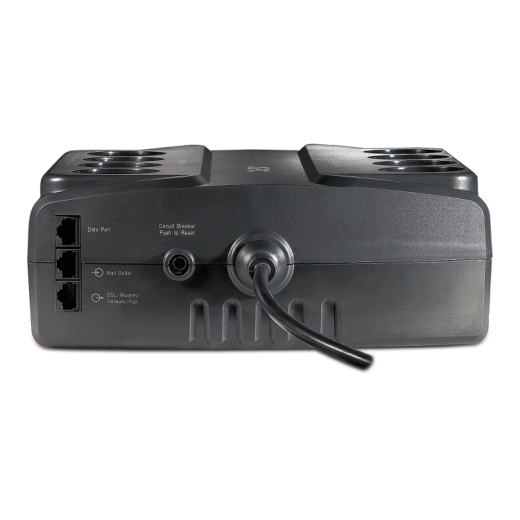

• Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-45 connector), Network line - 10/100 Base-T Ethernet (RJ-45 connector)
• Filtering:Full time multi-pole noise filtering: 5% IEEE surge let-through: zero clamping response time: meets UL 1449
