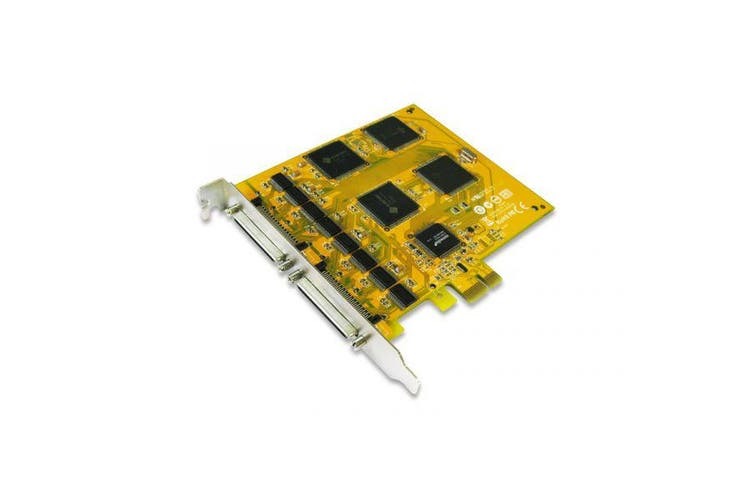

Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS (LS)

SKU: Leader-IDSUN-SER5416H

Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS (LS)

SKU: Leader-IDSUN-SER5416H

$464.46
RRP $499.00
SAVE $34.54
  • Only 4 Left!

or 4 payments of $116.11 with Info

Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS (LS)

Quantity
-
+

Calculate shipping



Standard Shipping - $7.95
2-6 Business Days With Tracking, Maximum $7.95
Express Shipping - $9.95
Next Business Day Within Australia Post Express Post Network

Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS

  • Expands 16 independent RS-232 serial ports with communication speeds up to 921.6Kbps.
  • High speed SUN1999 16C950 compatible UART controller on-board.
  • Designed to meet PCI Express Base Specification Revision 1.1.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Serial Communication

  • Interface RS-232 Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Controller SUNIX SUN1999
  • (16C950 UART Compatible) Baud rate 50bps ~921.6Kbps
  • BUS PCI Express one lane (x1) Stop bit 1, 1.5, 2
  • No. of Port 16-port Parity even, odd, none, mark, space
  • IRQ & IO Assigned by System Flow Control None, Xon/Xoff, RTS/CTS
  • FIFO 128byte Hardware PCB Connector Mini SCSI 68 Female
  • Protection ±15KV ESD protection for each signal Human Body Model (HBM)
  • ±15KV IEC1000-4-2 Air Gap Discharge
  • ±8KV IEC1000-4-2 Contact Discharge

Dimension

  • PCB Dimension 120 x 110 mm
  • Bracket Standard 121 mm
  • Bracket Space 1

12 Month
