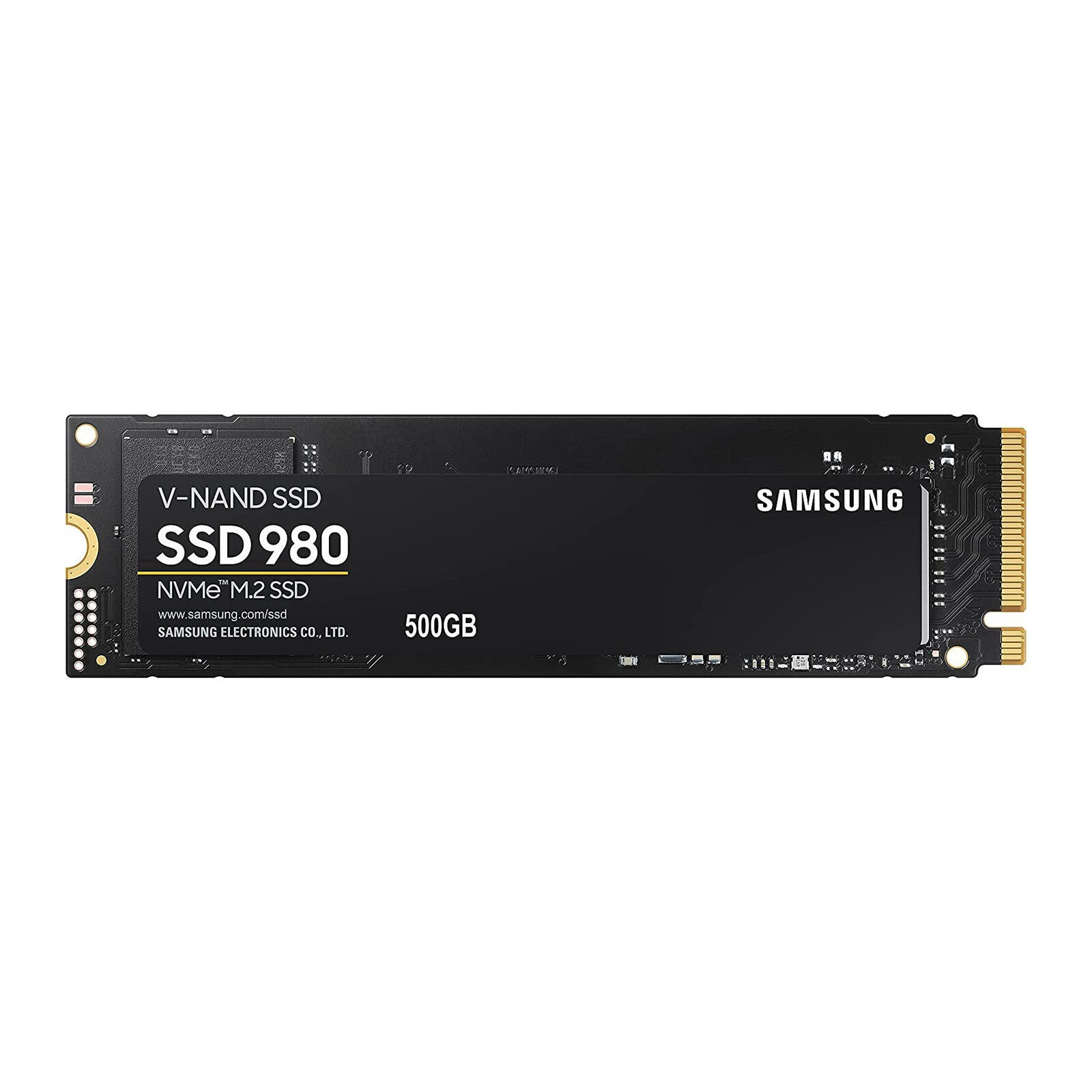

The Samsung 980 M.2 PCI-E NVMe SSD features a sequential read and write speed of up to 3500/3000MB/s, M.2 2280 form factor, PCI-E 3.0 x4, NVMe 1.4 interface, 600 TBW, consistent high performance with Full Power Mode, reliable thermal control, dynamic thermal guard technology, and can be managed via the Samsung Magician software.


PRODUCT FEATURES

• Upgrade to breathtaking NVMe speed
  It's time to maximise your PC's potential with the 980. Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is the smart choice for outstanding SSD performance and it's all backed by an NVMe interface and PCIe 3.0 technology.

• Packed with speed
  Get right to it. The 980 harnesses nearly all the speed advantages of PCIe 3.0 through HMB technology and dramatic NVMe efficiency. The DRAM-less design delivers exceptional value, achieving breakneck sequential read/write speeds up to 3,500/3,000 MB/s, over 6.2x the speed of SATA SSDs.

• Keep moving with Full Power Mode
  Keep your SSD running at peak level for nonstop, consistent high performance with Full Power Mode. Switch it on through Samsung Magician software to always keep your SSD in active mode. Instantly jump right back to intensive work with huge files, graphics-heavy games or even normal PC usage.

• Built for the long run
  Keep your files safe with an SSD that's in it for the long haul. With up to 600 TBW and a 5-year limited warranty, the 980's optimised endurance comes with proven reliability thanks to Samsung's in-house solutions, from the state-of-the-art controller to V-NAND and the latest firmware.

• Reliable thermal control
  High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.

• Smart thermal solution
  Embedded with Samsung's cutting-edge thermal control algorithm, the 980 manages heat on its own to deliver durable and reliable performance. To minimise performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980's temperature at optimal levels.

• Samsung Magician software
  Unlock the full power of the 980 with Samsung Magician's intuitive yet advanced optimisation tools. Monitor drive health, optimise performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.

• World's No. 1 Flash Memory
  Experience superior performance and reliability that you can only get from the world's number one brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.


PRODUCT SPECIFICATIONS

• Application: Client PCs
• Capacity: 500GB/1000GB (1GB=1 Billion byte by IDEMA)
• Form Factor: M.2 (2280)
• Interface: PCIe Gen 3.0 x4, NVMe 1.4
• Dimension (WxHxD): 80.15 x 22.15 x 2.38 (mm)
• Weight: Max 8.0 g Weight
• Storage Memory: Samsung V-NAND 3-bit MLC
• Controller: Samsung Pablo Controller
• Cache Memory: HMB(Host Memory Buffer)
• TRIM Support: Supported
• S.M.A.R.T Support: Supported
• GC (Garbage Collection): Auto Garbage Collection Algorithm
• Encryption Support:  AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support: Not supported
• Device Sleep Mode Support: Yes
• Sequential Read: Up to 3,500 MB/s
• Sequential Write: Up to 3,000 MB/s
• Random Read (4KB, QD32): Up to 500,000 IOPS
• Random Write (4KB, QD32): Up to 480,000 IOPS\
• Random Read (4KB, QD1): Up to 17,000 IOPS
• Random Write (4KB, QD1): Up to 54,000 IOPS
• Average Power Consumption (system level): Average: 4.6 W / Maximum: 5.3 W (Burst mode)
• Power consumption (Idle): Max. 45 mW
• Allowable Voltage: 3.3 V / 5 %
• Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
• Operating Temperature: 0 - 70 Operating Temperature
• Shock: 1,500 G & 0.5 ms (Half sine)
• Installation Kit: Not Available
• Management SW: Magician Software for SSD management
• Warranty: 5-Year Limited Warranty or 600 TBW Limited Warranty
