DESCRIPTION

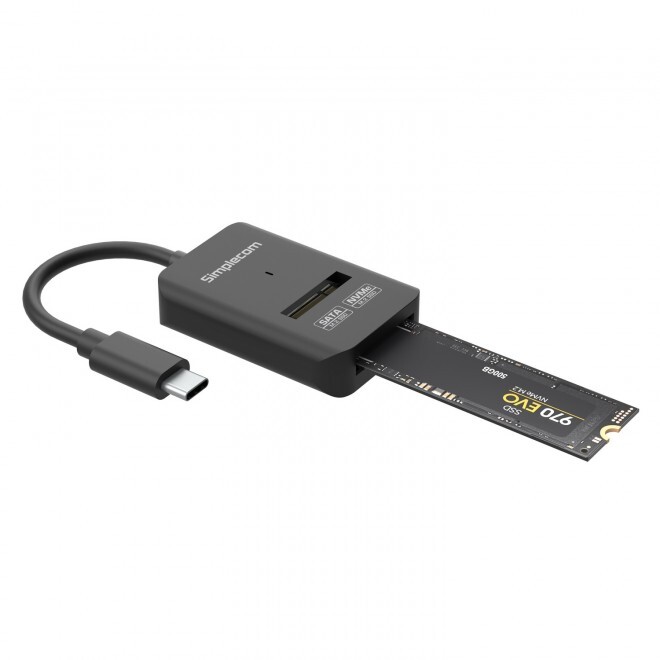

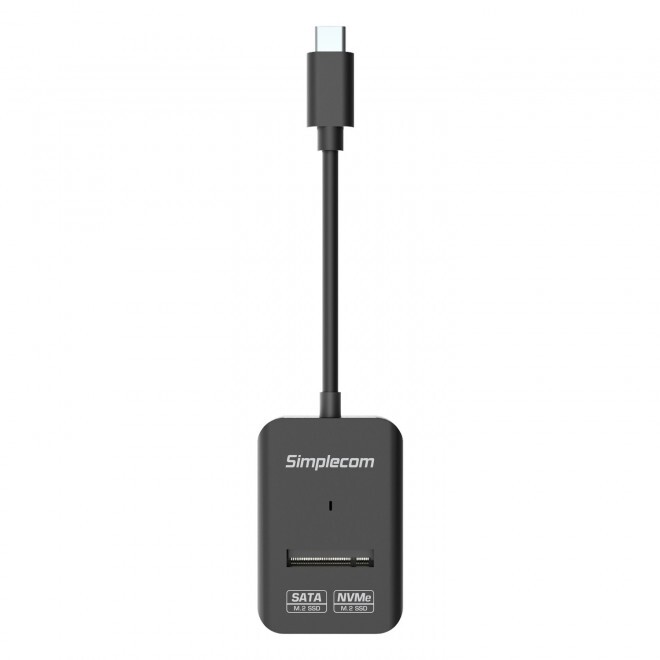

SA506 is a M.2 SSD to USB-C adapter that supports both NVMe and SATA protocol based M.2 SSDs. No need to worry about which type of M.2 SSD you have, this adapter converts both SATA and NVMe M.2 SSD to USB-C for easy access on your computer.

This adapter is plug and play and USB powered, no external power needed to operate. USB 3.2 Gen 2 interface for super-fast read and write speed up to 10Gbps. It’s an ideal solution for for data migration, drive cloning and data backup. Designed for fast and easy access of M.2 SSD, this cable style adapter makes it easy to swap multiple M.2 SSDs without having to install them into a PC or enclosure.

Features

• Dual Protocol support for both NVMe and SATA M.2 SSD
• Convert M.2 SSD (M Key or B+M Key) to USB-C
• USB 3.2 Gen 2 interface up to 10Gbps transfer rate
• Cable style adapter for easy swap and access of multiple M.2 SSDs
• Supports USAP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life
• Plug and play, no driver required
• LED indicator for power and activity status

Specifications

• Model: SA506
• Material: ABS Plastic
• Interface: USB-C (USB 3.2 Gen 2)
• Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
• Compatible M.2 Type: NVMe M.2, SATA M.2
• Compatible M.2 size: 2230 / 2242 / 2260 / 2280 / 22100
• Dimension: 158x37x12mm (LxWxH)
• Operation Temperature: 0 - 45°C
• Operating System Support: Windows 7 and above, Mac OS 10.8 and above

Package Contents

• 1x SA506 M.2 SSD to USB-C Adapter
• 1x User Manual

Important Note

• *SA506 supports both NVMe and SATA based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA M.2 SSD is 6Gbps
