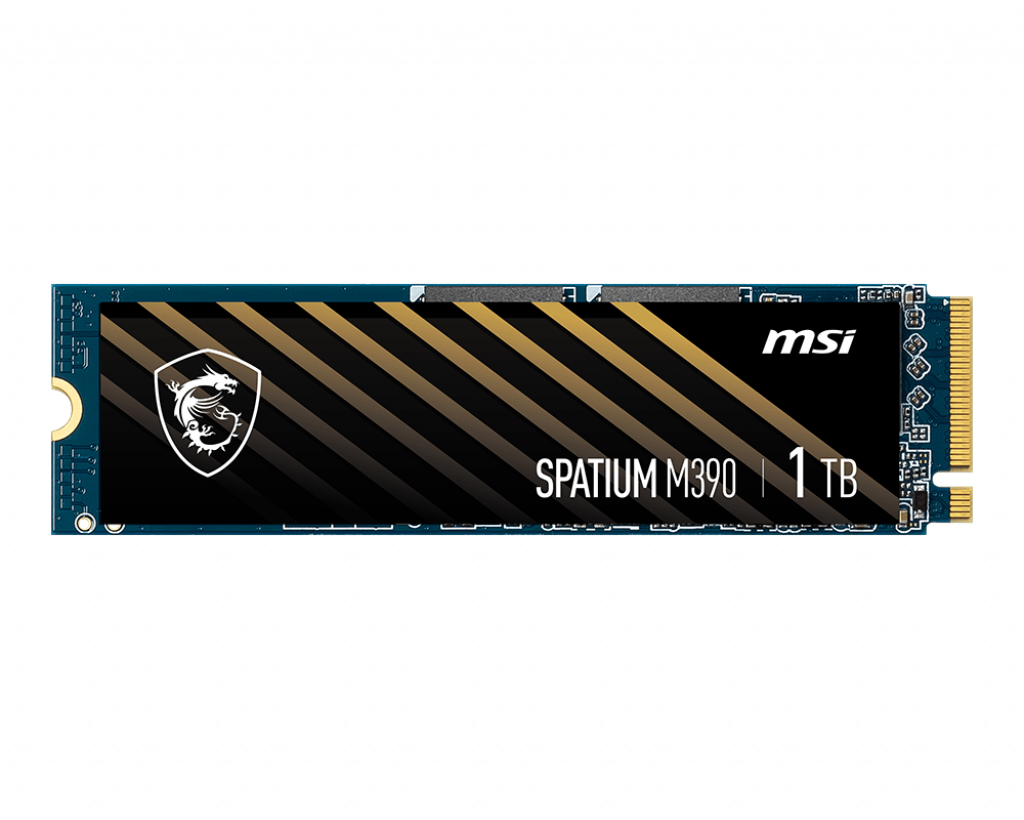

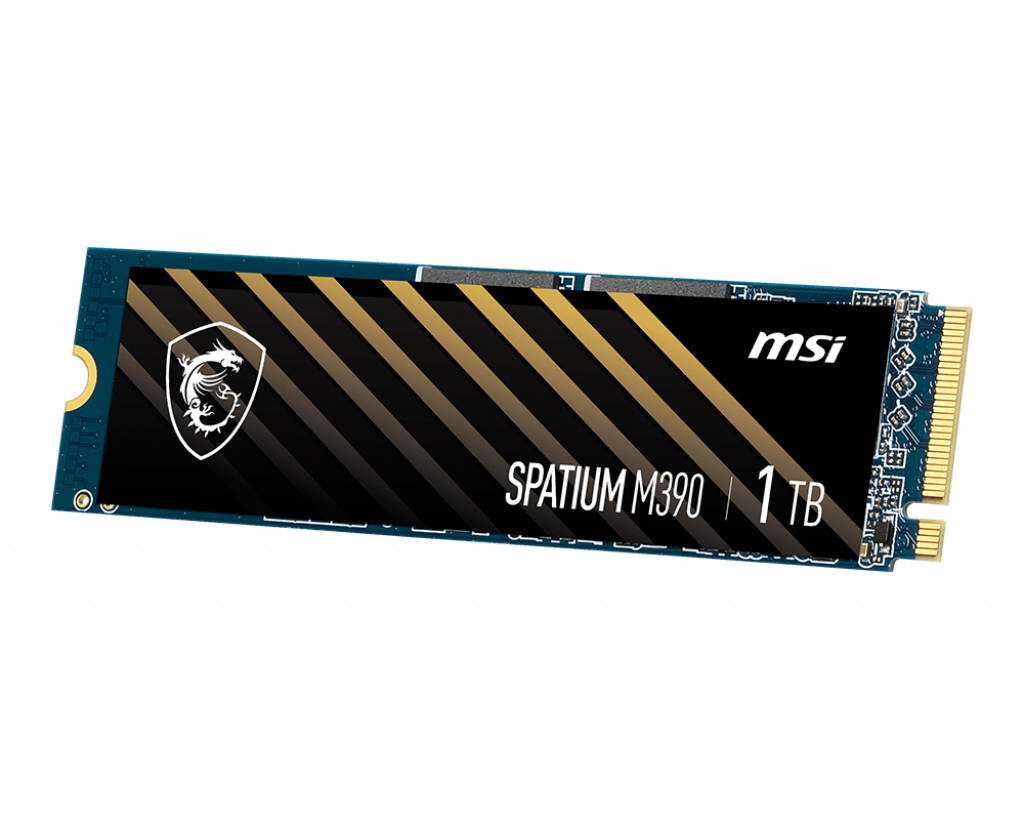

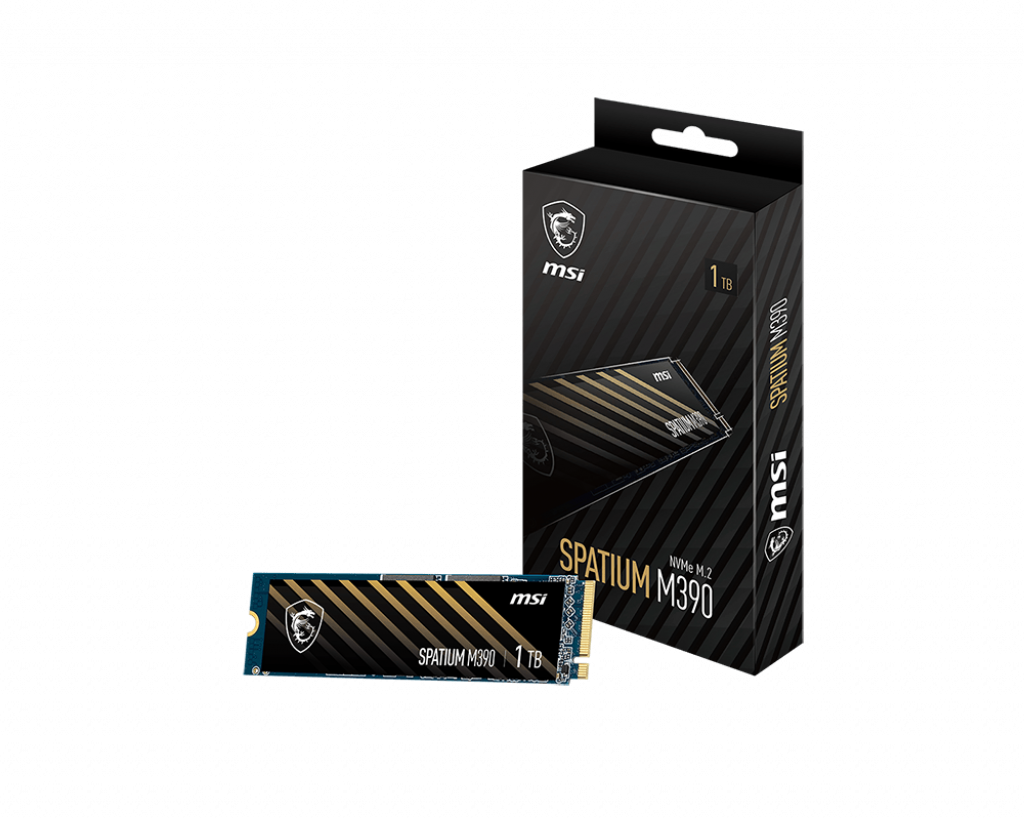

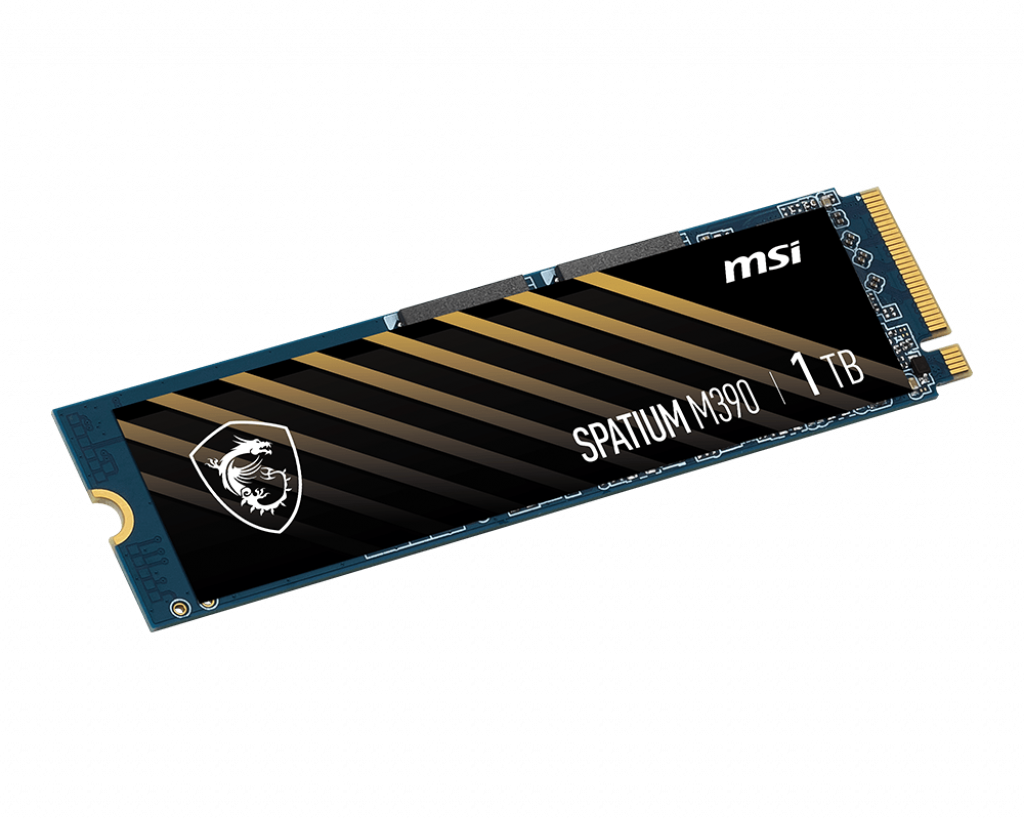

MSI SPATIUM M390 NVMe M.2 SSD 1TB, 3300 MB/s Read, 3000 MB/s Write, PCI-E 3.0, 400 TBW, 5 Year Warranty

• SPATIUM M390 NVMe M.2
• PCIe Gen3x4 interface and complies with the NVMe 1.4 standard
• Sequential Read speeds up to 3300MB/s and Write speeds up to 3000MB/s
• Up to 1200 TBW
• Built-in data security and error-correction capabilities
• 250GB to 2TB capacities in M.2 2280 form factor
• Suitable for both desktop and notebook
• 5-Year Warranty

Specifications

• Model Name SPATIUM M390 NVMe M.2
• Capacity 1TB
• Controller PHISON E15T
• Flash Memory 3D NAND
• Form Factor M.2 2280
• Interface PCIe Gen3x4, NVMe 1.4
• Compatibility PCIe Gen3 / Gen2 / Gen1
• Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
• Sequential Read up to (MB/s) 3300
• Sequential Write up to (MB/s) 3000
• Random Read 4KB up to (IOPS) 420K
• Random Write 4KB up to (IOPS) 550K
• Maximum Operating Power (W) 4.0
• Idle Power PS3 (mW) 30
• Low Power L1.2 (mW) 5
• Operating Temperatures 0°C – 70°C
• Storage Temperatures -40°C – 85°C
• Terabytes Written (TBW) 400
• Mean Time Between Failure
• (MTBF) Up to 1,500,000 Hours
• Limited Warranty 5 Years, or the coverage for the maximum
• TBW as stated, whichever comes first.
• Advanced Features
• TRIM (Performance Optimization, OS
• support required)
• SMART (Self-Monitoring, Analysis and
• Reporting Technology)
• LDPC (Low Density Parity Check) ECC
• Algorithm
• End to End Data Path Protection
• APST (Autonomous Power State Transition)
• AES256/TCG OPAL2.0/Pyrite (Encryption,
• Data Security)
