Suspended Spiral
Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Intel : LGA 115X / 1200 / 1700 / 20XX
AMD : AM3 / AM4 / AM5 / TR4

Superior Fin Density
Massive 13 fins dissipate heat rapidly.

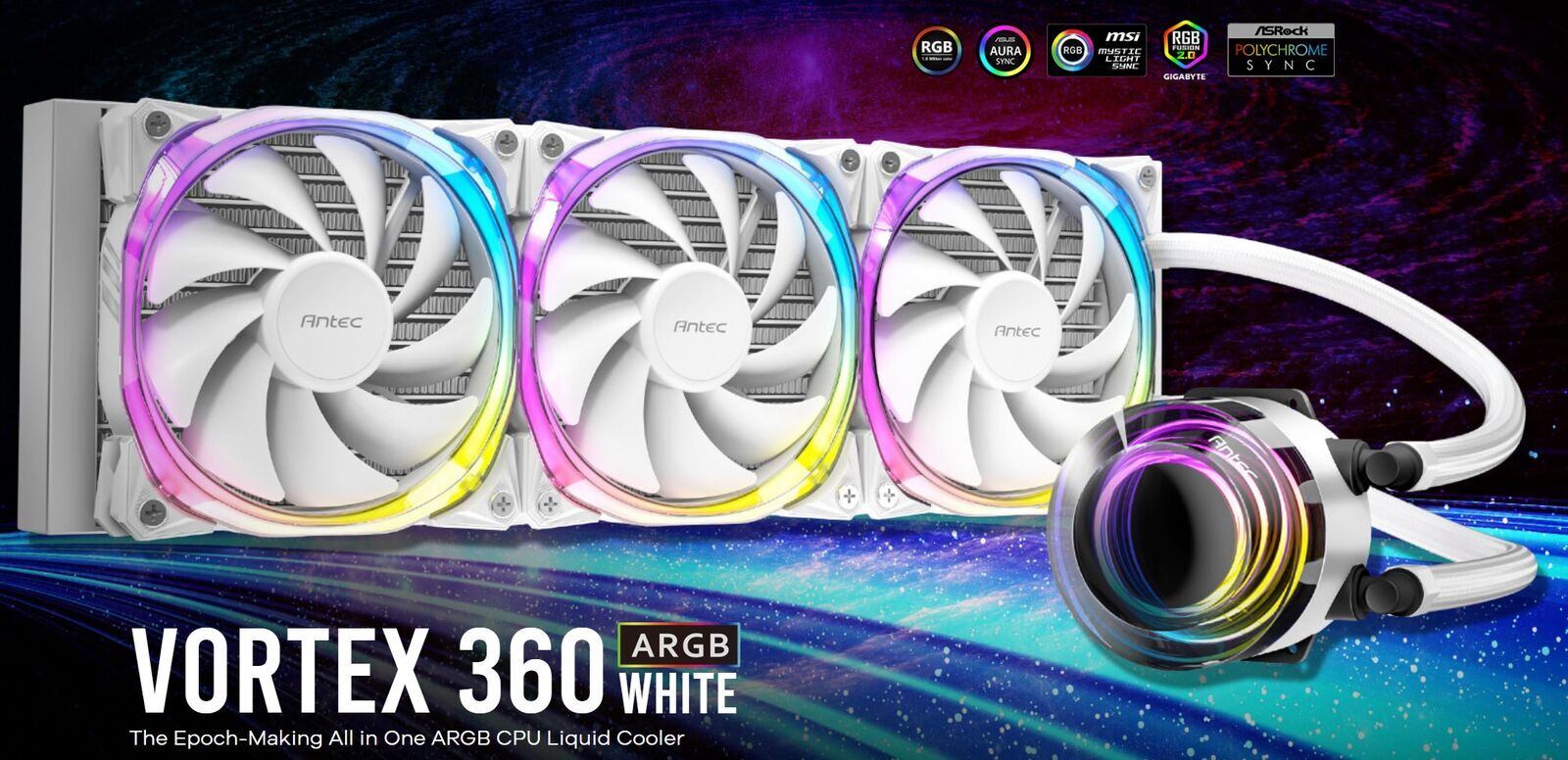

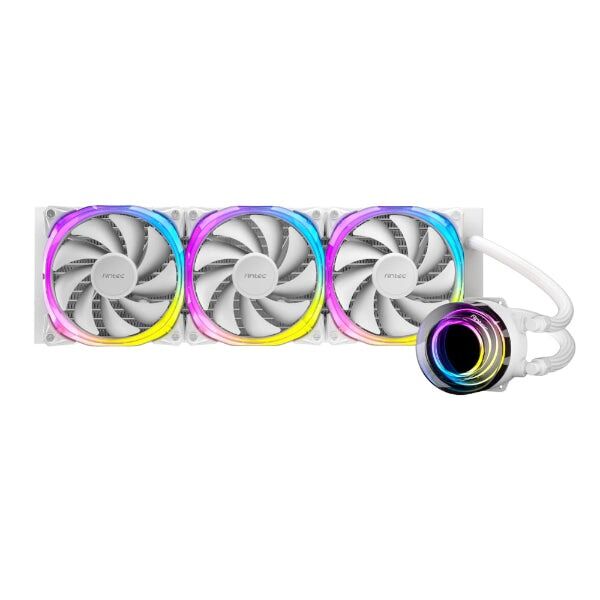

The Vortex 360 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.

Included ARGB Controller Working
in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.

Radiator
Radiator Dimensions 397 x 120 x 27 mm
Radiator Material Aluminum
Pump
Dimensions ￠67 x 48.5 mm
Rating Voltage DC 12 V
Minimum Startup Voltage ≥5.0 V
Fan Speed 2800 ± 10% RPM
Rated Current 0.25 ± 20% A
Consumed Power 3.0 W
Flow rate ≥1300 mL/min
Water Pressure 1.4M
Operation Temperature -10°C ~ +60°C
Noise Level ≤28 dB(A)
Lifespan 40,000 hours
Connector PUMP: 3-pin | LED: 3-pin
Fan
Model Name Fusion 120 ARGB White
Fan Type PWM Fan
Dimensions 120 x 120 x 25 mm
Bearing Type Hydraulic Bearing
LED Type Addressable RGB
Fan Speed 600 ± 200~2000 ± 10% RPM
Airflow 57.93 CFM (max.)
Air Pressure 2.11 mmH₂O (max.)
Fan Noise Level 31.24 dB(A)
Lifespan 40,000 hours
