Atdec Mounting Panel for Network Device, Video Conferencing System, Digital Signage Display, Media Storage, Content Distribution Device - Black - 7.94 kg Load Capacity

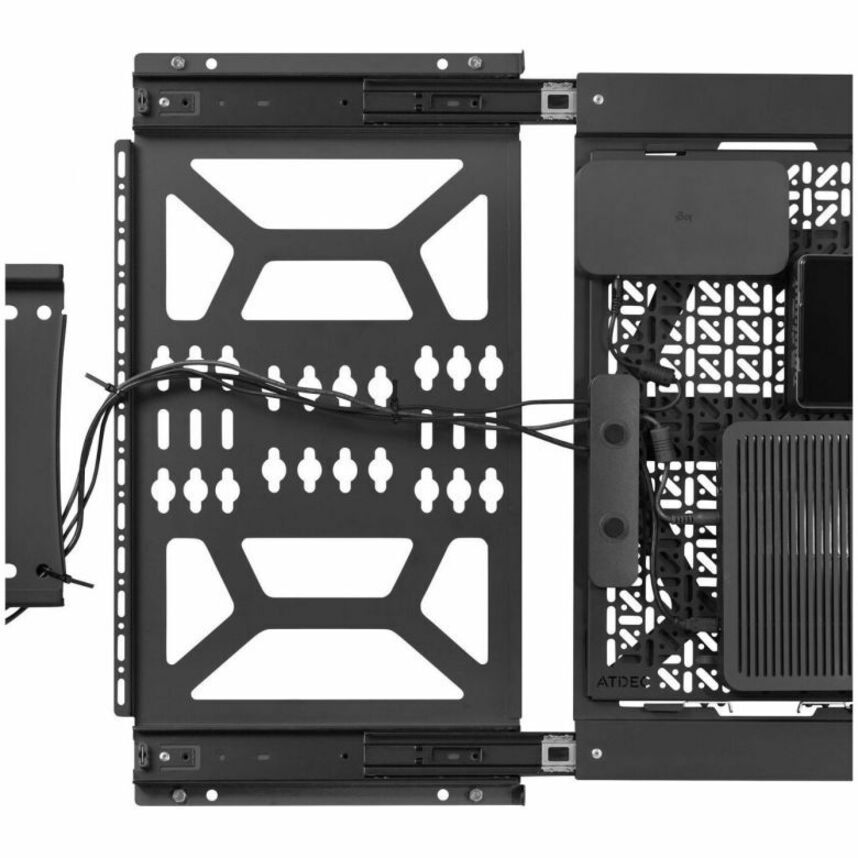

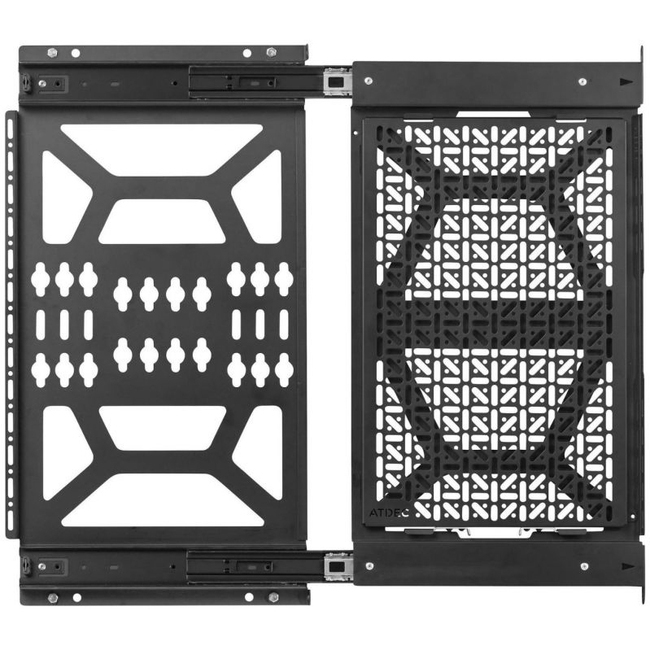

This sliding storage panel is designed to accommodate equipment behind the display. Its generous storage area with universal mounting hole pattern accommodates a variety of media and networking devices on a single panel. The sliding mechanism assists with system installation and maintenance. The slider extends 13.8" for easy access and cabling. All components can be mounted on a removable mounting tray and then hooked onto the slider using the quick release/attachment mechanism. The sliding panel can be attached directly to the wall or to Atdec's ADB extrusions on either side of the display. Anti-theft features include a 0.23" padlock hole and security screws.

Important: The media storage panel's depth when attached to the wall is 0.7". When choosing a compatible display bracket and mounting arrangement, consider the depth of the equipment attached to the sliding panel to allow for free sliding movement.
The total minimum distance from the wall to the back of the display is a sum of the following dimensions:
B (minimum) = A + C + D

A: depth of the tallest device attached to the sliding panel
C: depth of the sliding panel (0.7")
D: clearance of 0.1" recommended to allow for variances
