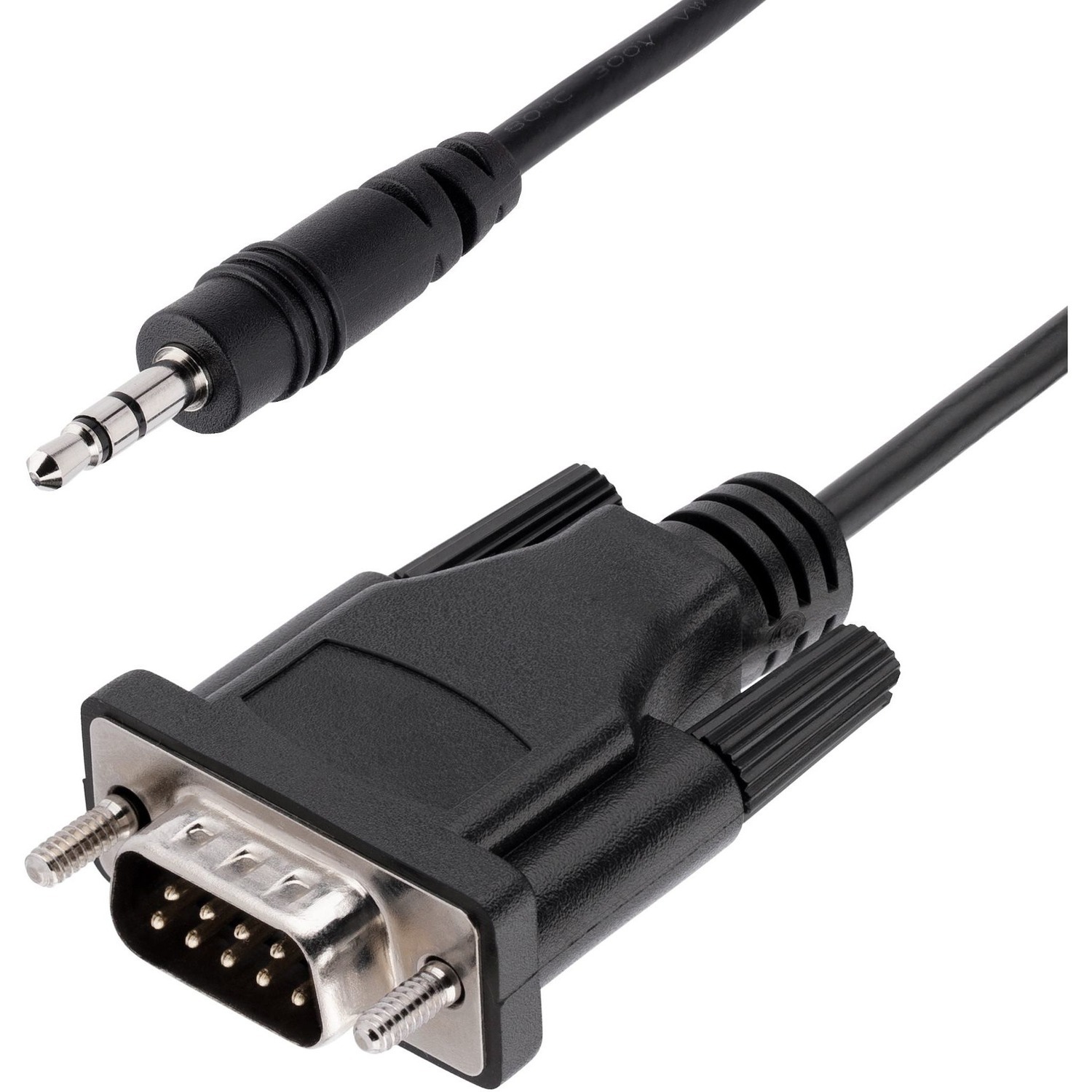

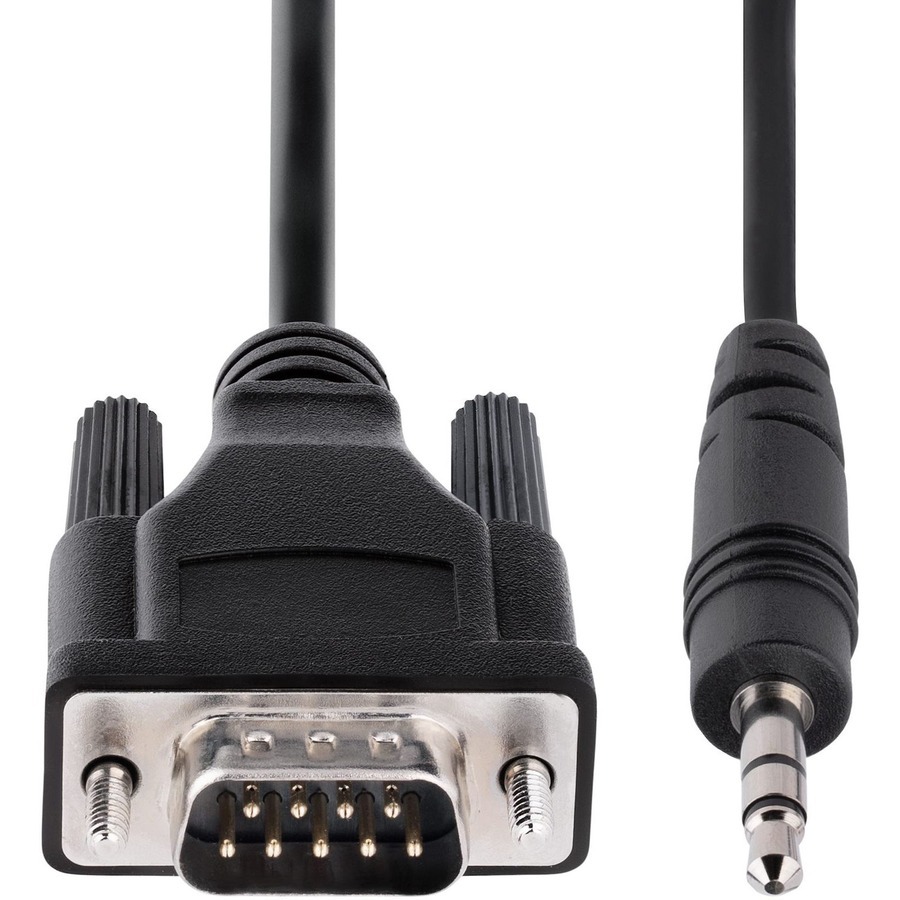

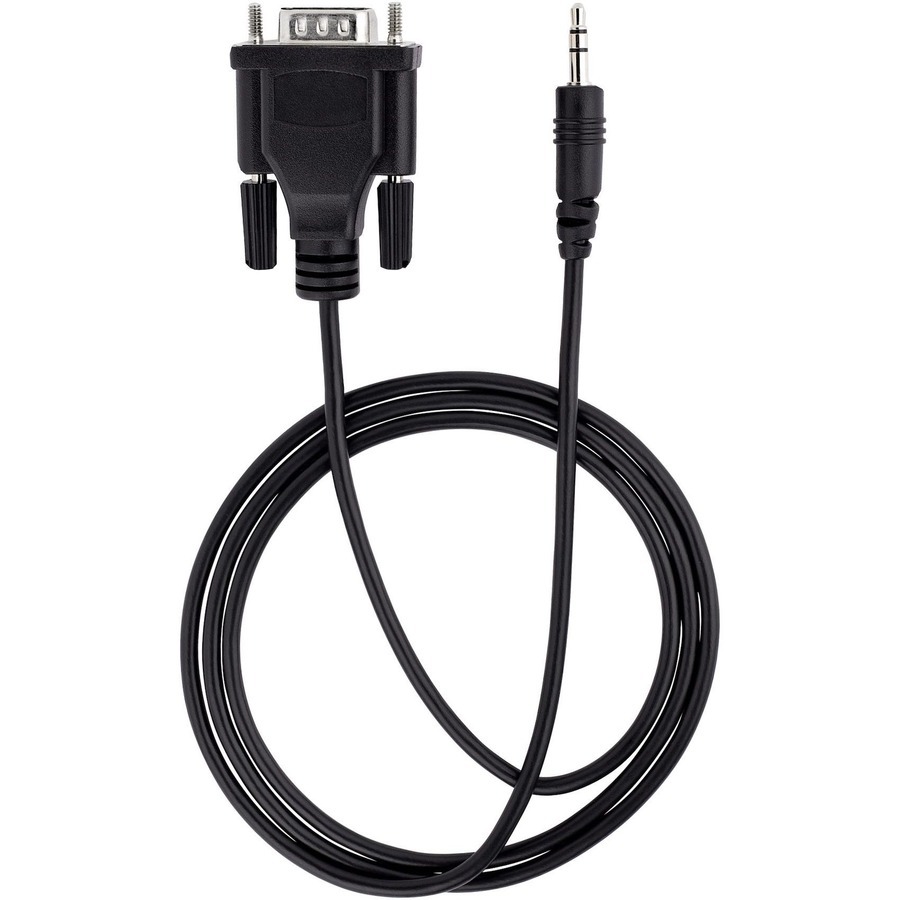

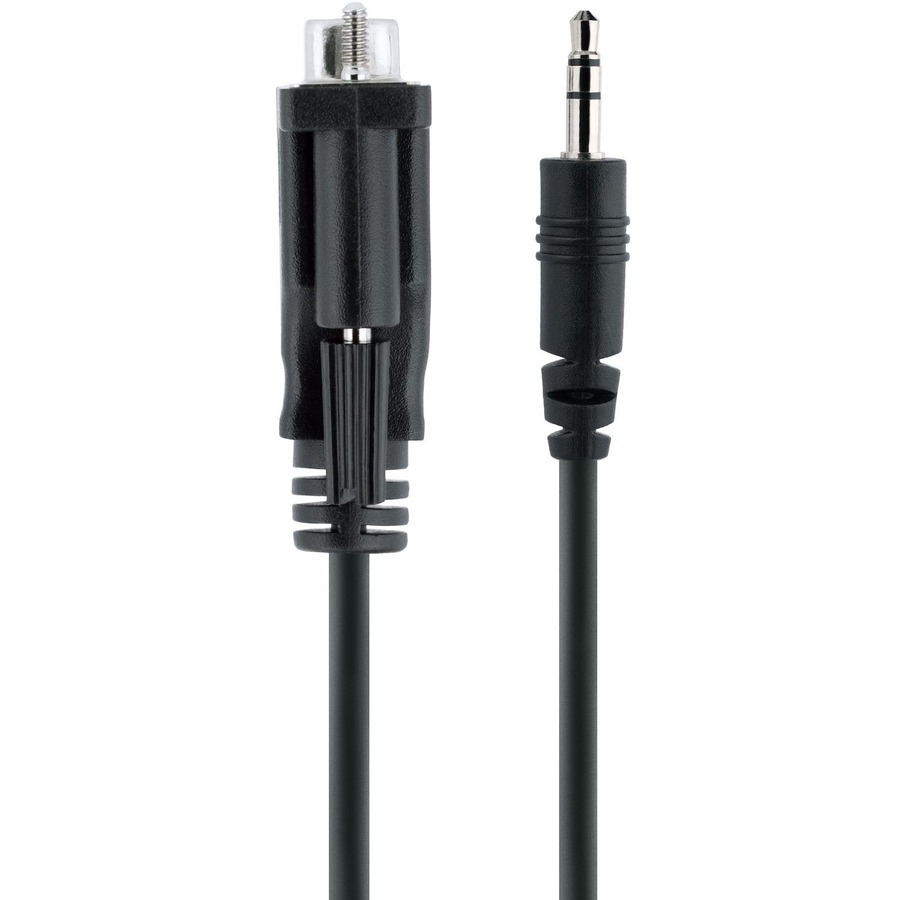

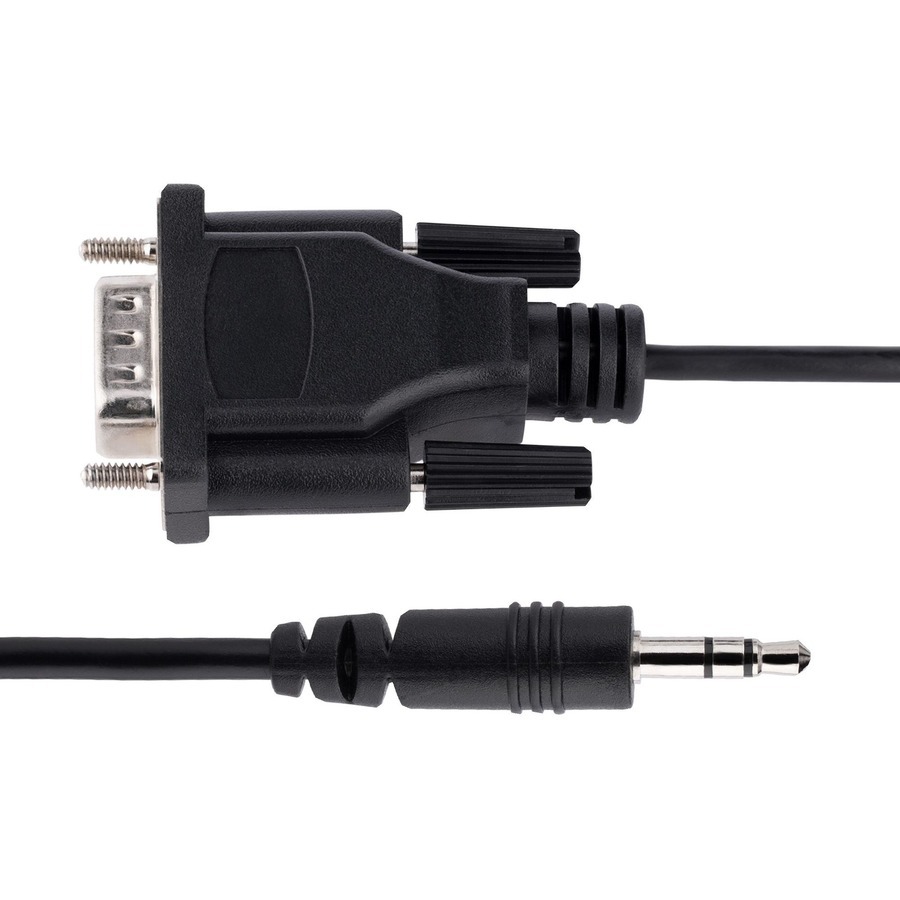

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack - First End: 1 x Mini-phone Stereo Audio - Male - Second End: 1 x 9-pin DB-9 RS-232 Serial - Male - Shielding - Nickel Plated Connector - 28 AWG - Black

This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.

High Quality Construction

The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.

Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption

DB9 Serial to 3.5mm Pinout

DB9 Pin 3 to 3.5mm Tip

DB9 Pin 2 to 3.5mm Ring

DB9 Pin 5 to 3.5mm Sleeve

This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

More from the Manufacturer

Features

• Allows easy connection between devices and helps transfer data quickly with accuracy
• Features EMI Protection
• Fully compatible with projectors
